Front Bumper Reinforcement: Service and Repair

51 11 055 Removing And Installing/Replacing Support For Front Bottom Bumper Panel







Necessary preliminary work:
- Remove front bumper panel

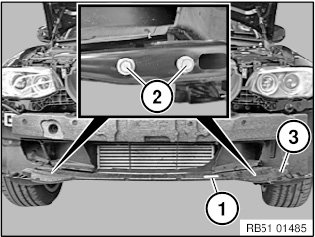

Remove impact absorber (1).
Mark top side on support (3).
Release screws (2) and remove support (3).
Tightening torque 51 11 5AZ.

Installation note:
Install support (3) with marked side towards top.
