Front Bumper Bracket: Service and Repair

51 11 773 Replacing Front Lower Left Or Right Deformation Element







Necessary preliminary work:
- Remove support for bumper panel at front bottom
- Remove front underbody protection
- Remove brake air duct.

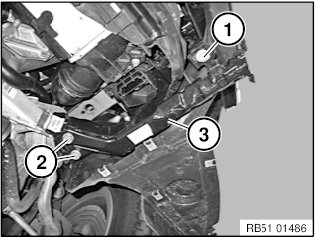

Release screw (1).
Tightening torque 51 11 6AZ.
Unfasten screws (2).
Tightening torque 51 11 8AZ.
Remove deformation element (3).
