22 32 055 Removing and Installing/Replacing Transmission Bearing Block

22 32 055 Removing And Installing/Replacing Transmission Bearing Block







Remove rubber mounts for gearbox mounting.

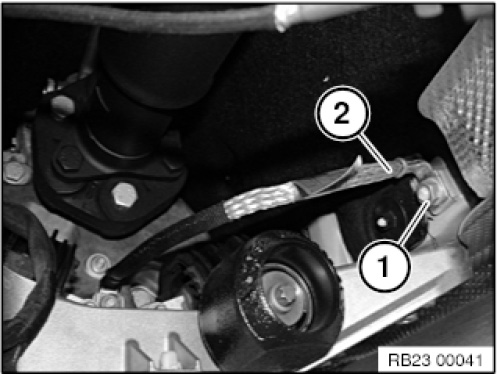

Slacken nut (1).
Unfasten ground strap (2).

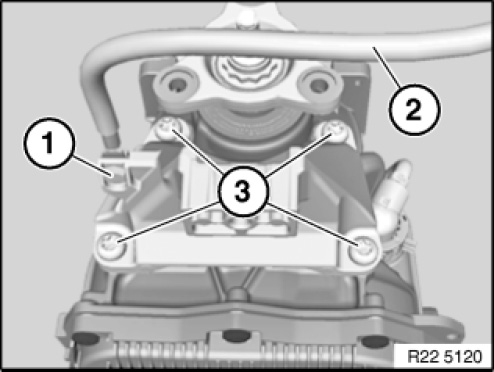

Release screw (1) and remove ground cable.
Release screws (3).
Remove transmission mounting bracket from transmission.

Installation note:
Tightening torque 22 32 1AZ.
