Home >> BMW >> 2012 >> ActiveHybrid 5 (F10H) L6-3.0L Turbo (N55) Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension Control ( Automatic - Electronic ) >> Wiring Diagrams >> Integrated Chassis Management >> ICM Control Unit

ICM Control Unit

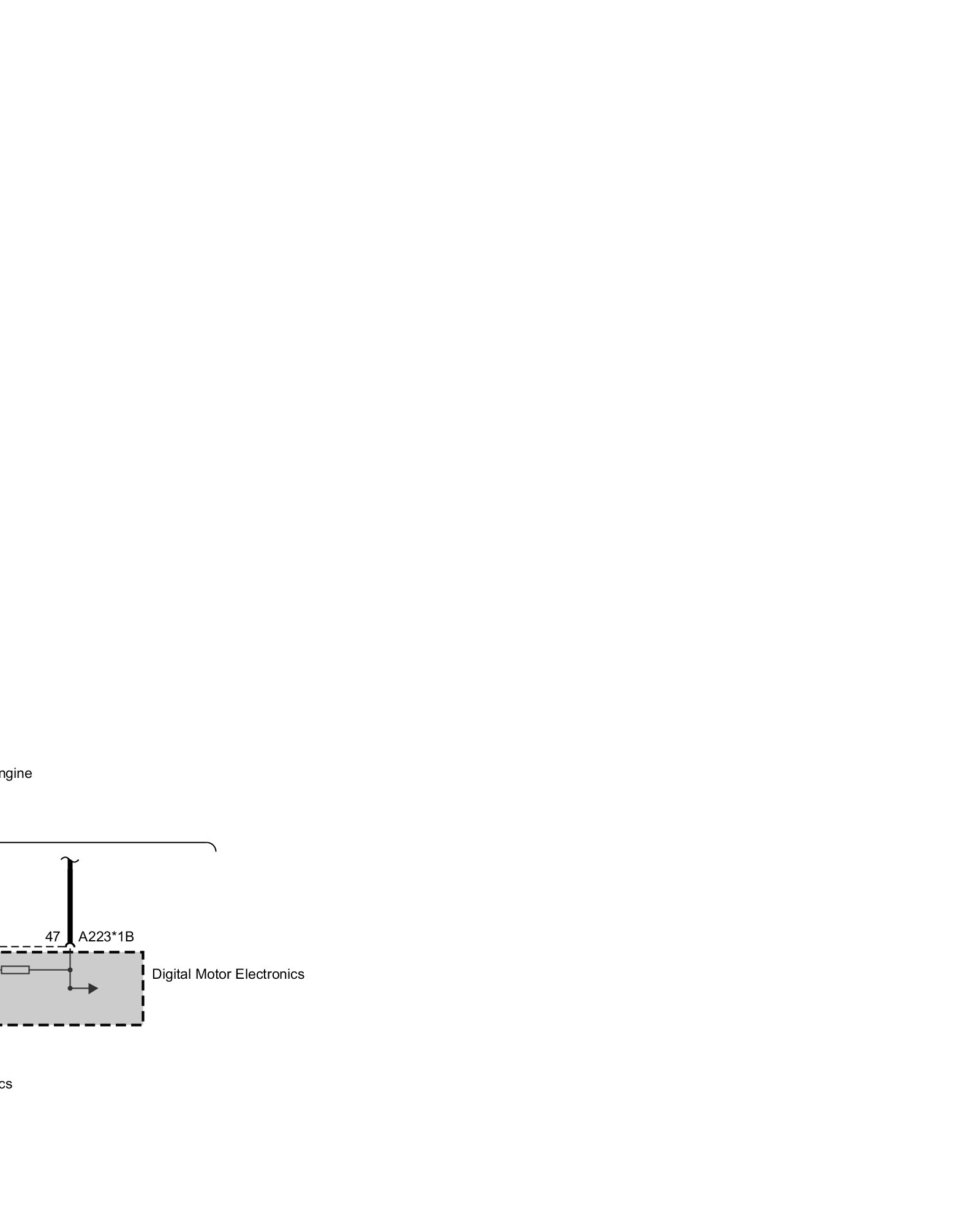

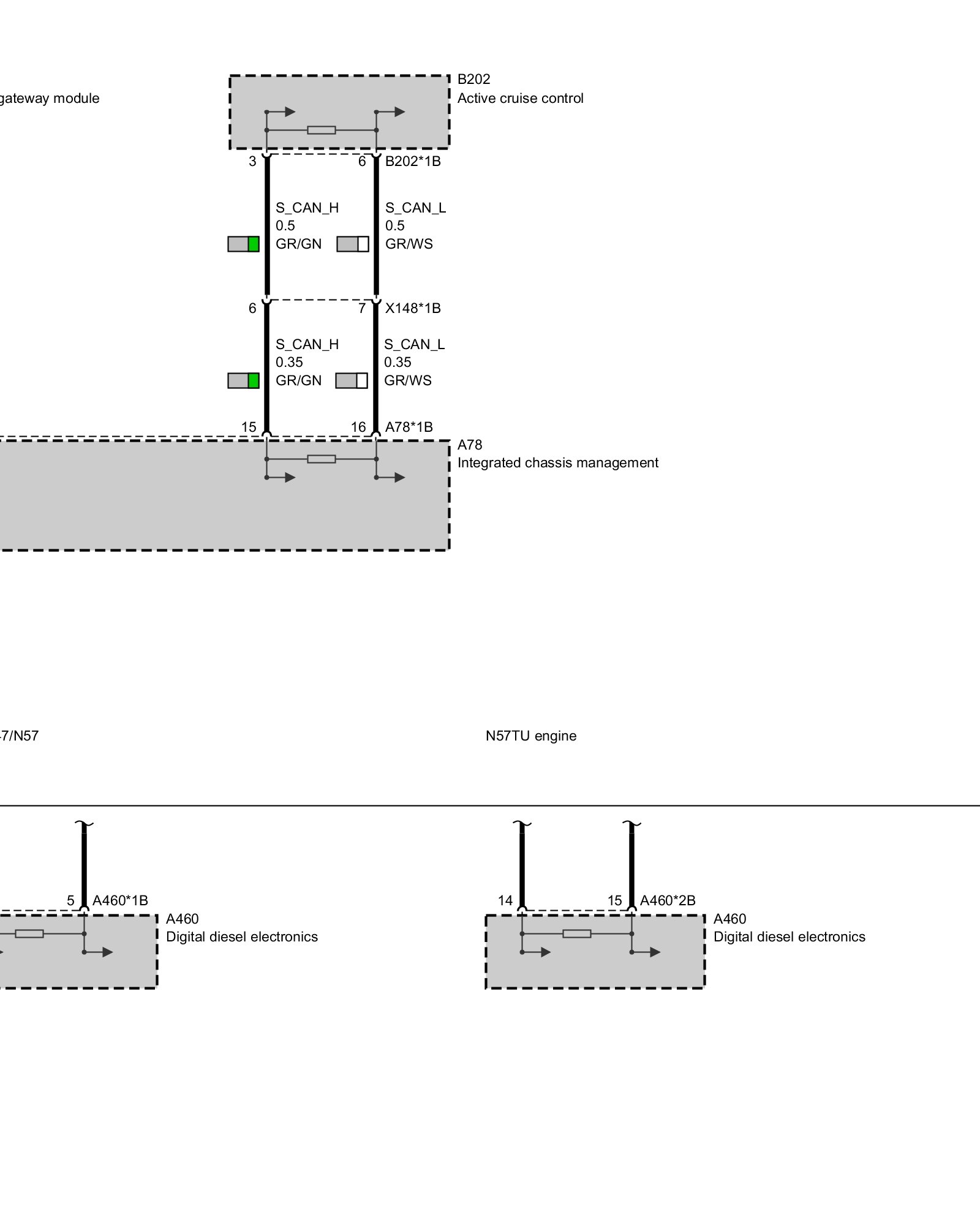

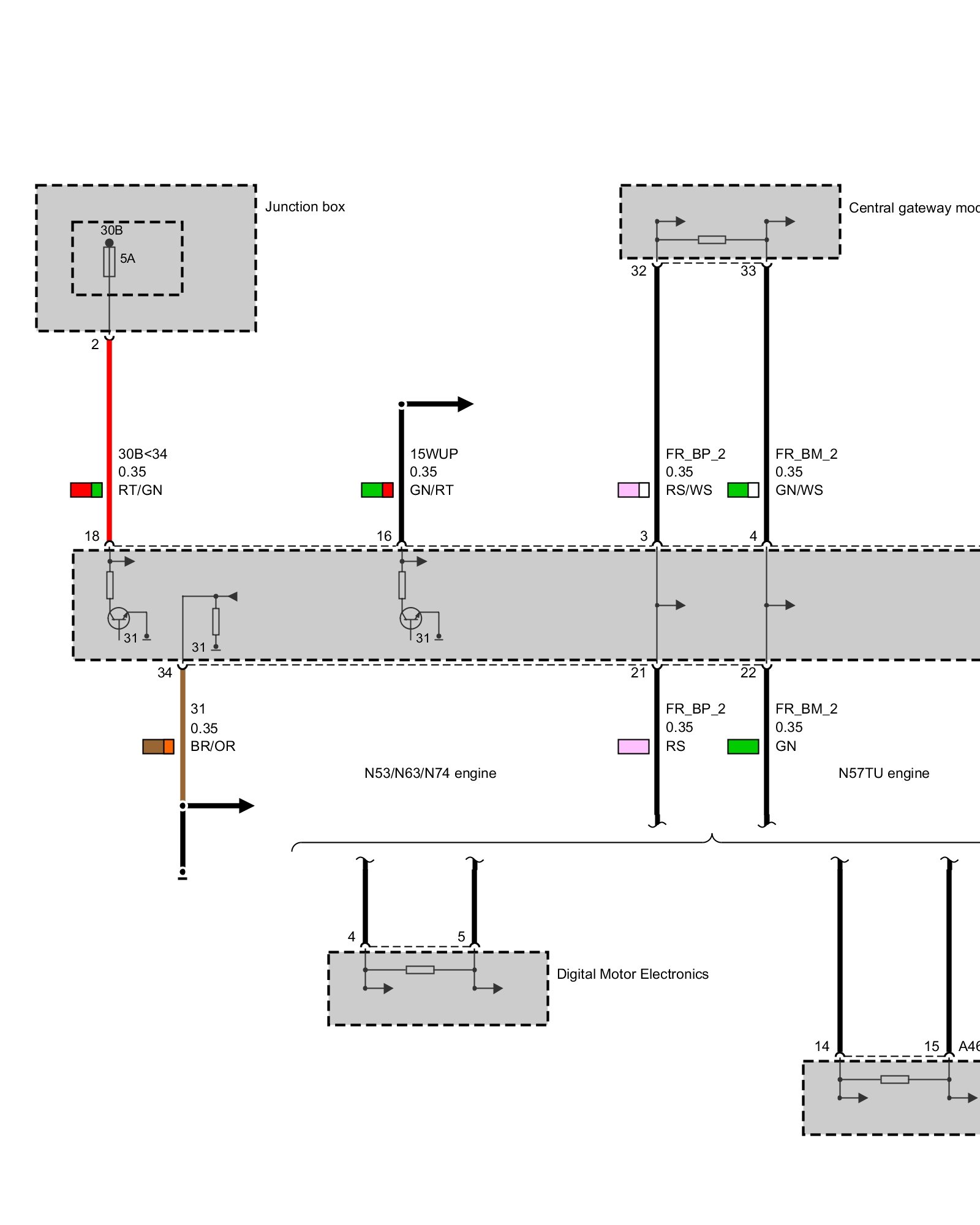

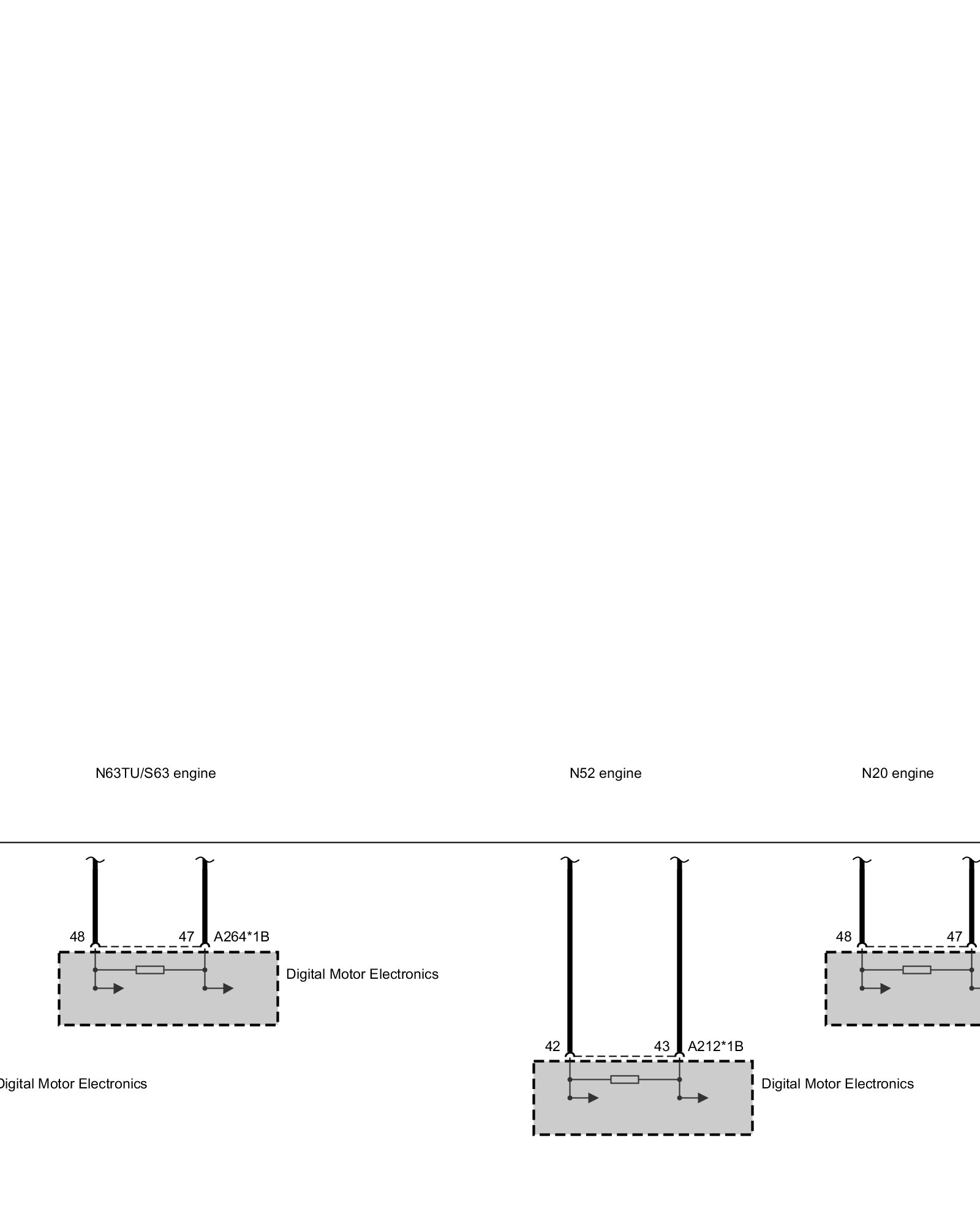

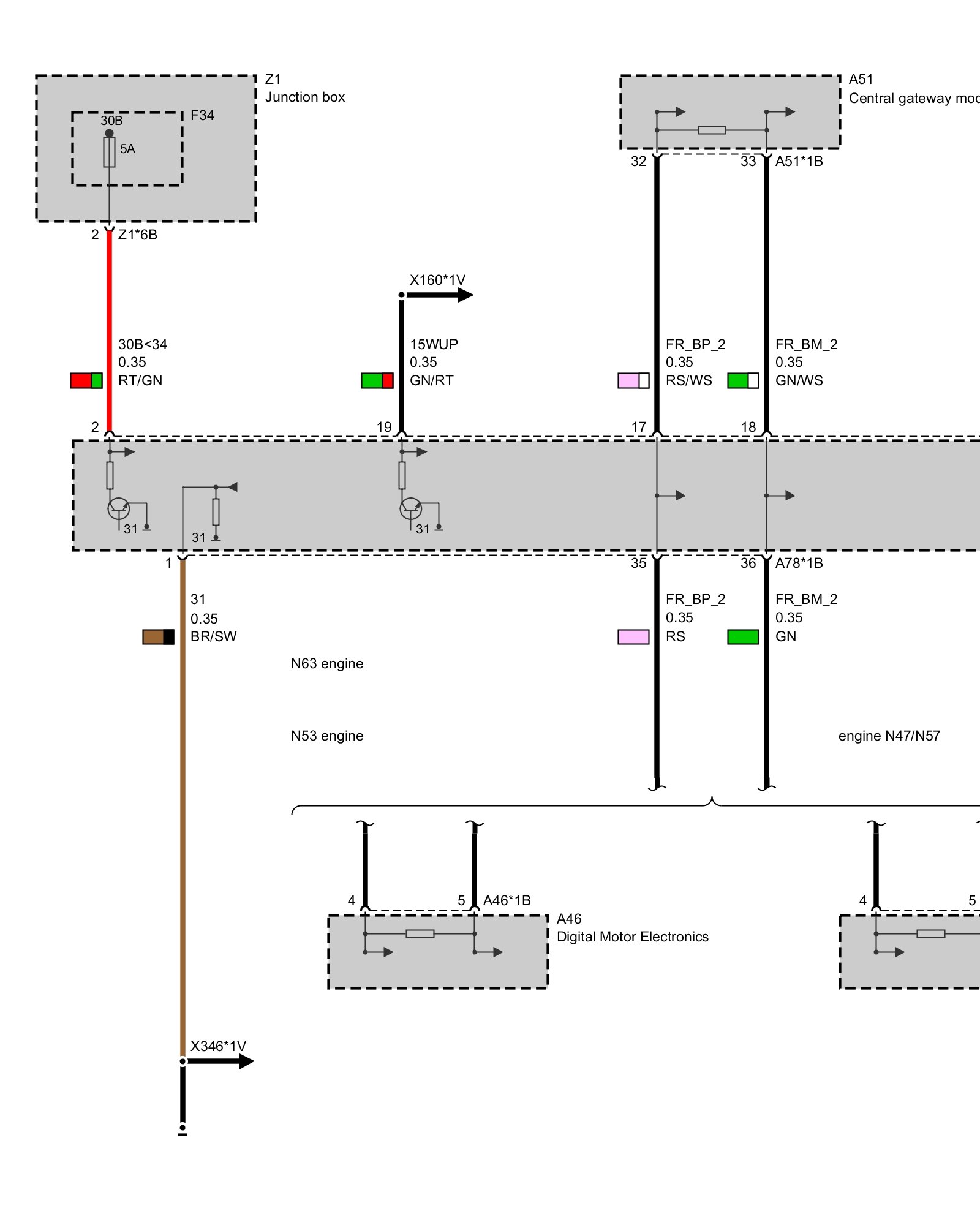

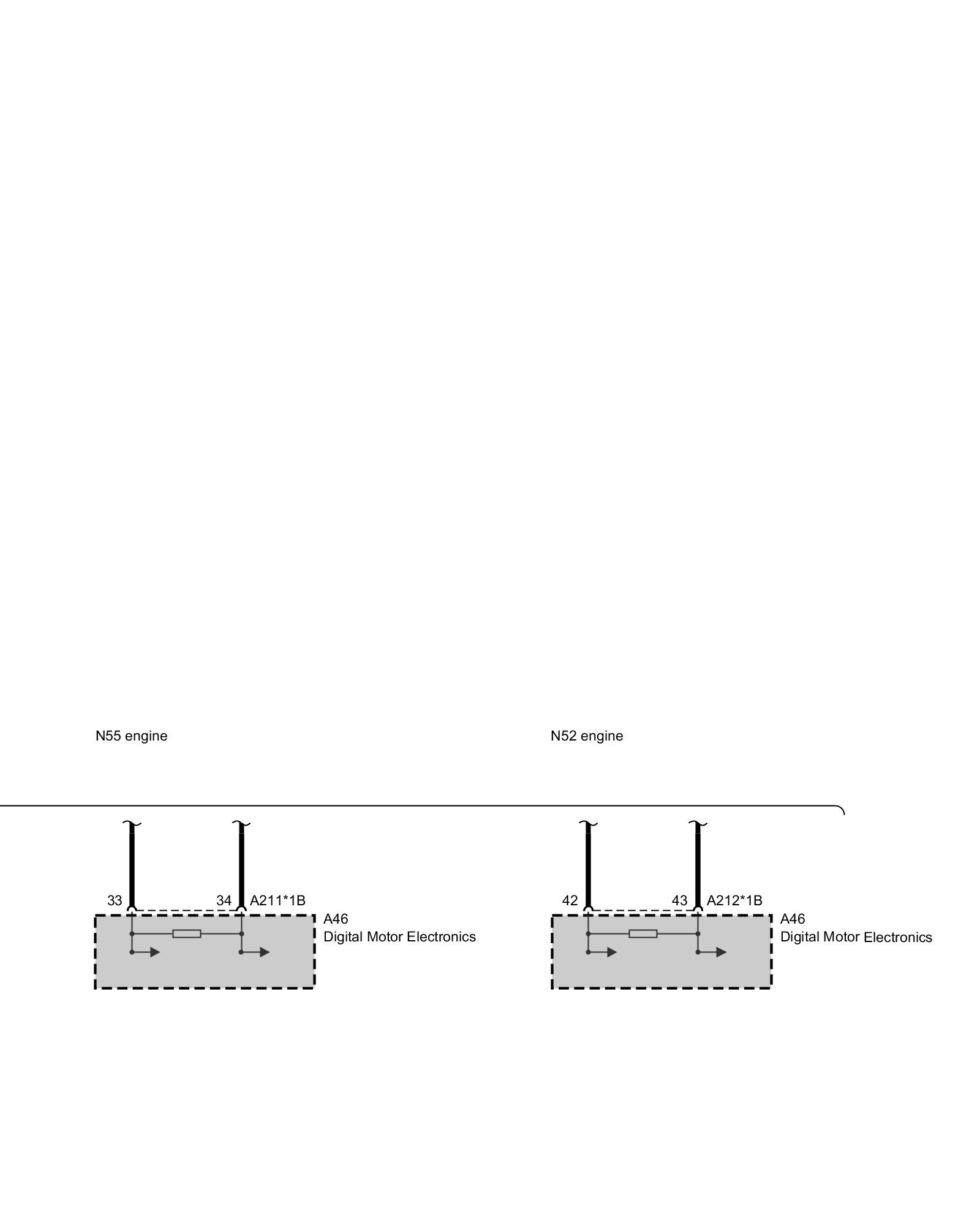

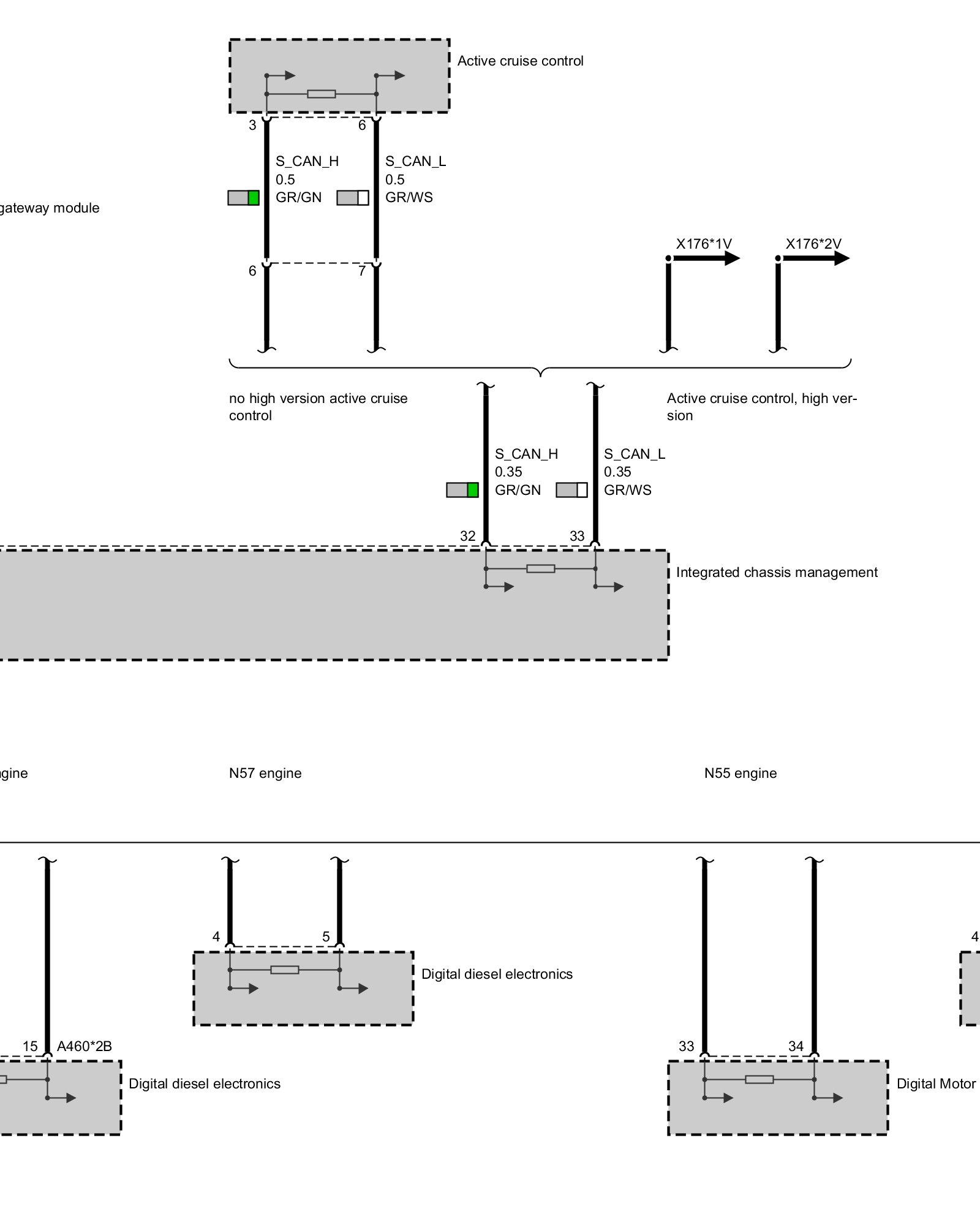

Supply Integrated Chassis Management
