License Plate Bracket: Service and Repair

51 11 ... Marking template for number plate on front







(Refer to Service Information 01 14 10 (653)).

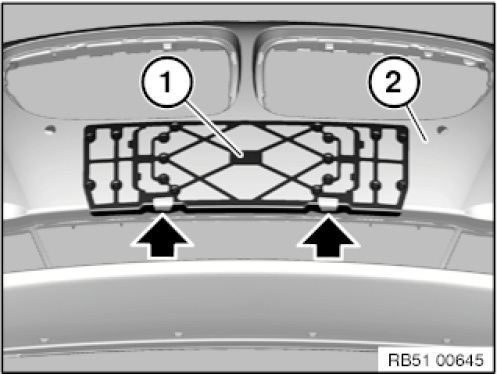

Attach the drilling template (1) as shown on the bottom of the bumper trim panel (2).
Transfer the corresponding specified plate dimension points for bolting from the drilling template (1) to the bumper trim panel (2).
