22 32 050 Replacing Crossmember For Transmission Mounting

22 32 050 Replacing crossmember for transmission mounting (N74)





Necessary preliminary tasks:
^ Remove rear underbody protection
^ Support transmission with lifter.

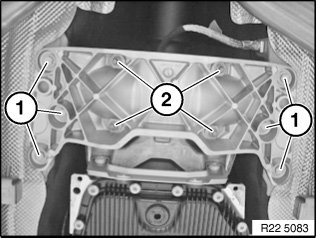

Release screws (1) and (2).

Remove transmission cross-member.

Tightening torque 22 32 3/4AZ.
