64 11 857 Replacing Servodrive For Left Rear Cabin Footwell Flap

64 11 857 Replacing Actuator Drive For Left Rear Cabin Footwell Flap (High A/C System)

Necessary preliminary tasks:
- Remove instrument panel trim

Position of actuator drive:
Overview of actuator drives on heater/air conditioner

Release screws (1) and remove grounding cable.

Installation:
Replace screws (1).
Take off holder (2).

Unclip connector piece (1) and slide downwards.

Installation:
Latching of connector piece (1) must be felt.

Release screws (1).
Remove air vent duct (2).
If necessary, unlock and disconnect plug connections on actuator drives.

Installation:
Ensure cable routing along air vent duct (2) is correct

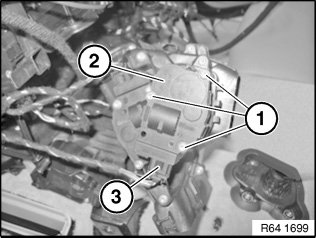

Release screws (1).
Remove servomotor (2) and unlock and disconnect plug connection (3).

Replacement:
Servomotors must be re-addressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
