64 11 788 Replacing Left Flap Actuator Drive



64 11 788 Replacing Left Flap Actuator Drive







Necessary preliminary work:
- Remove all luggage compartment trim panels or, from 11/2010 luggage compartment partition wall

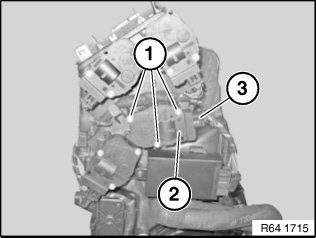

Release screws (1).
Remove servomotor (2) and unlock and disconnect plug connection (3).
