11 28 025 Replace Tensioning Device Pulley For Alternator Drive Belt

11 28 025 Replace tensioning device pulley for alternator drive belt (N74)





Necessary preliminary tasks:
^ Remove alternator drive belt

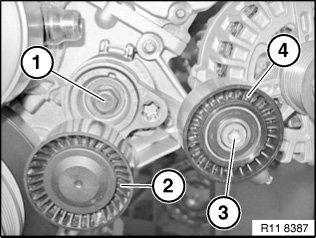

Remove pulley (2) protective cap.

Release screw (3).

Tightening torque 11 28 1AZ.

Remove idler pulley (4).

Assemble engine.
