33 32 091 Replacing A Control Arm

33 32 091 - Replacing a guide arm





Note:
If the guide arm is detached from the rear axle carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check.





Necessary preliminary tasks:
- Remove rear wheel 36 10 300 Removing or Installing Front or Rear Wheel.

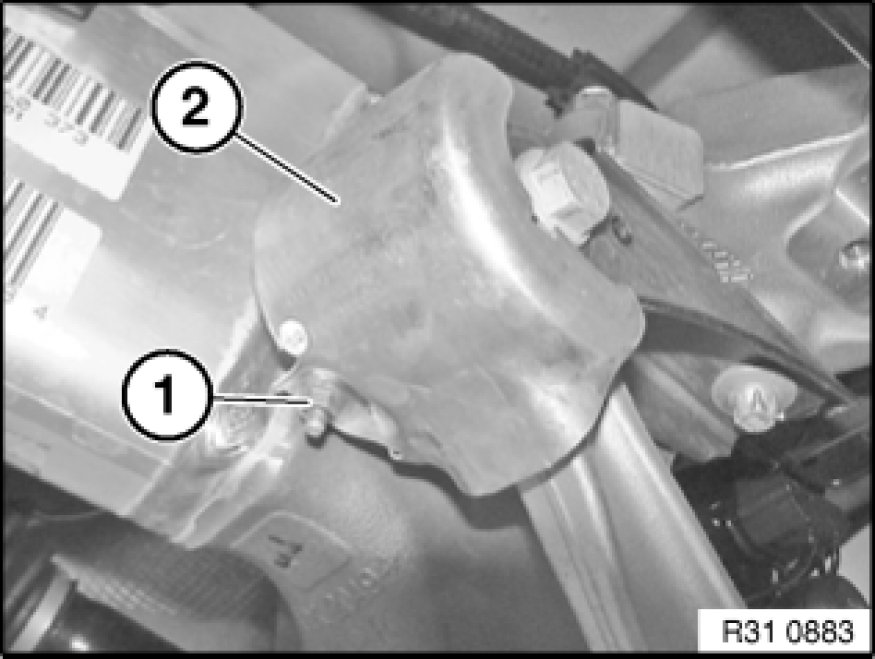

Release nut (1) and remove heat shield (2).
Tightening torque 33 32 10AZ .

Installation:
Replace self-locking nut.





Release screw (1).
Tightening torque 33 32 6AZ .

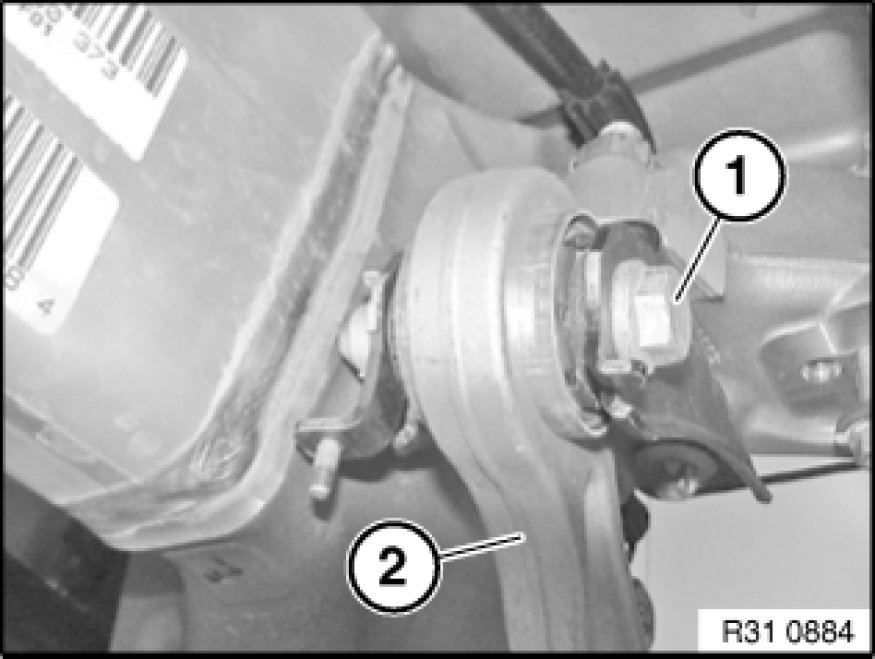

Pull out bolt (1) and remove guide arm (2).

Installation:
Tighten bolt connection in normal position 32 00 ... Moving Vehicle Into Normal Position.

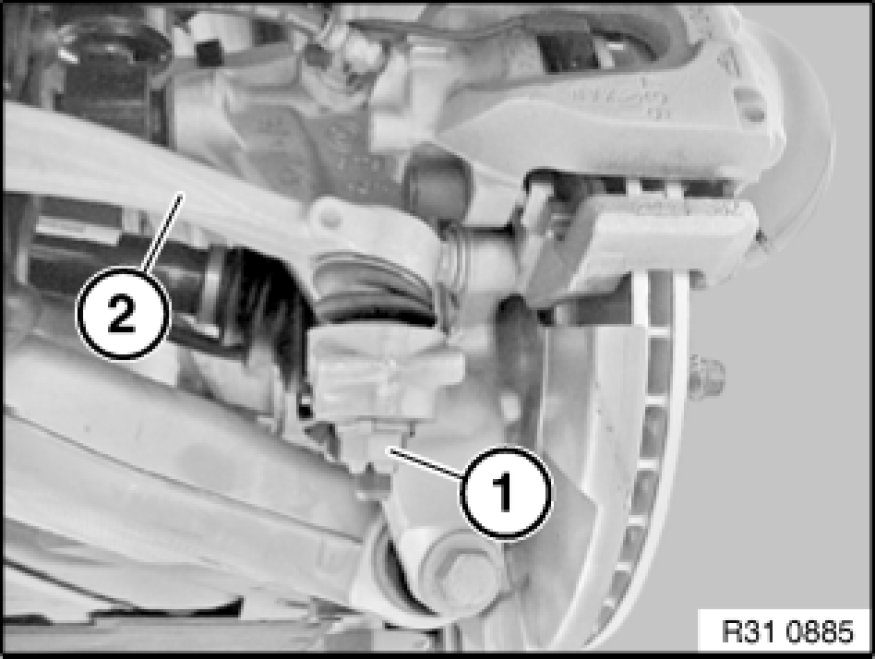

Slacken nut (1).
Tightening torque 33 32 7AZ .
Remove guide arm (2) from wheel carrier.

Installation:
Insert guide arm (2) first in wheel carrier.
Keep guide arm to wheel carrier connection clean and free from oil and grease.
Replace self-locking nut.





After installation:
- Perform chassis alignment check
