BMW
>>
2012
>>
740i (F01) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>

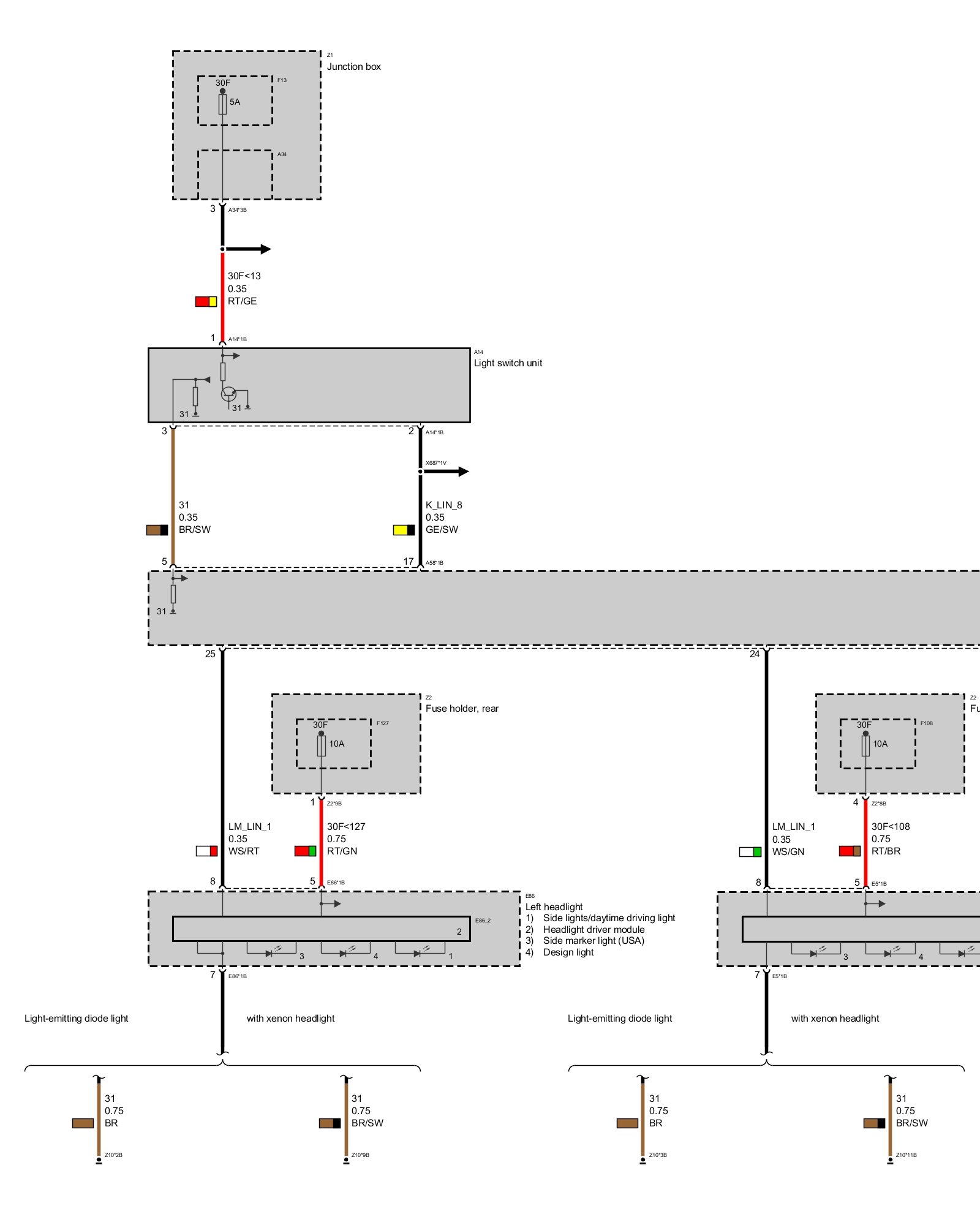

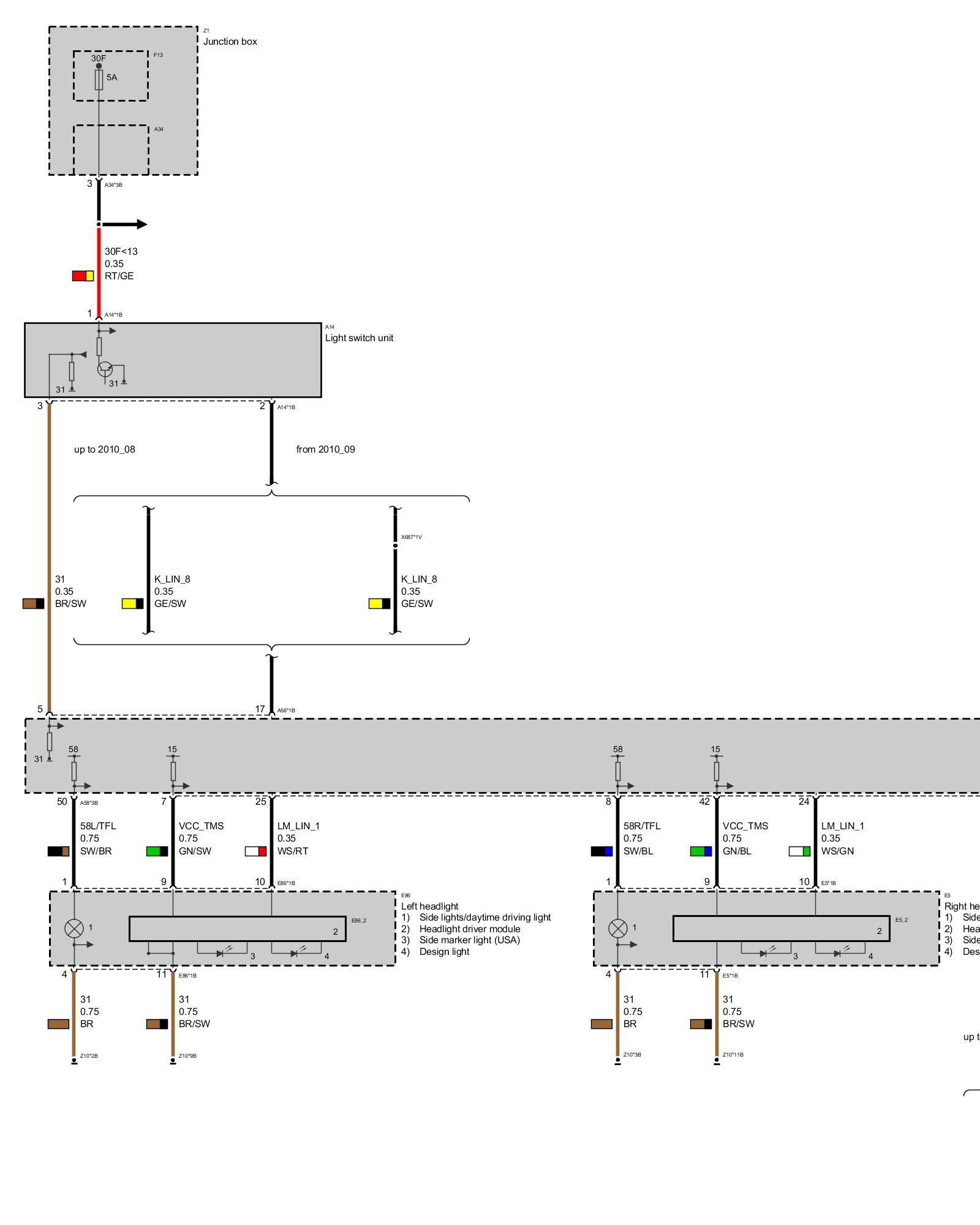

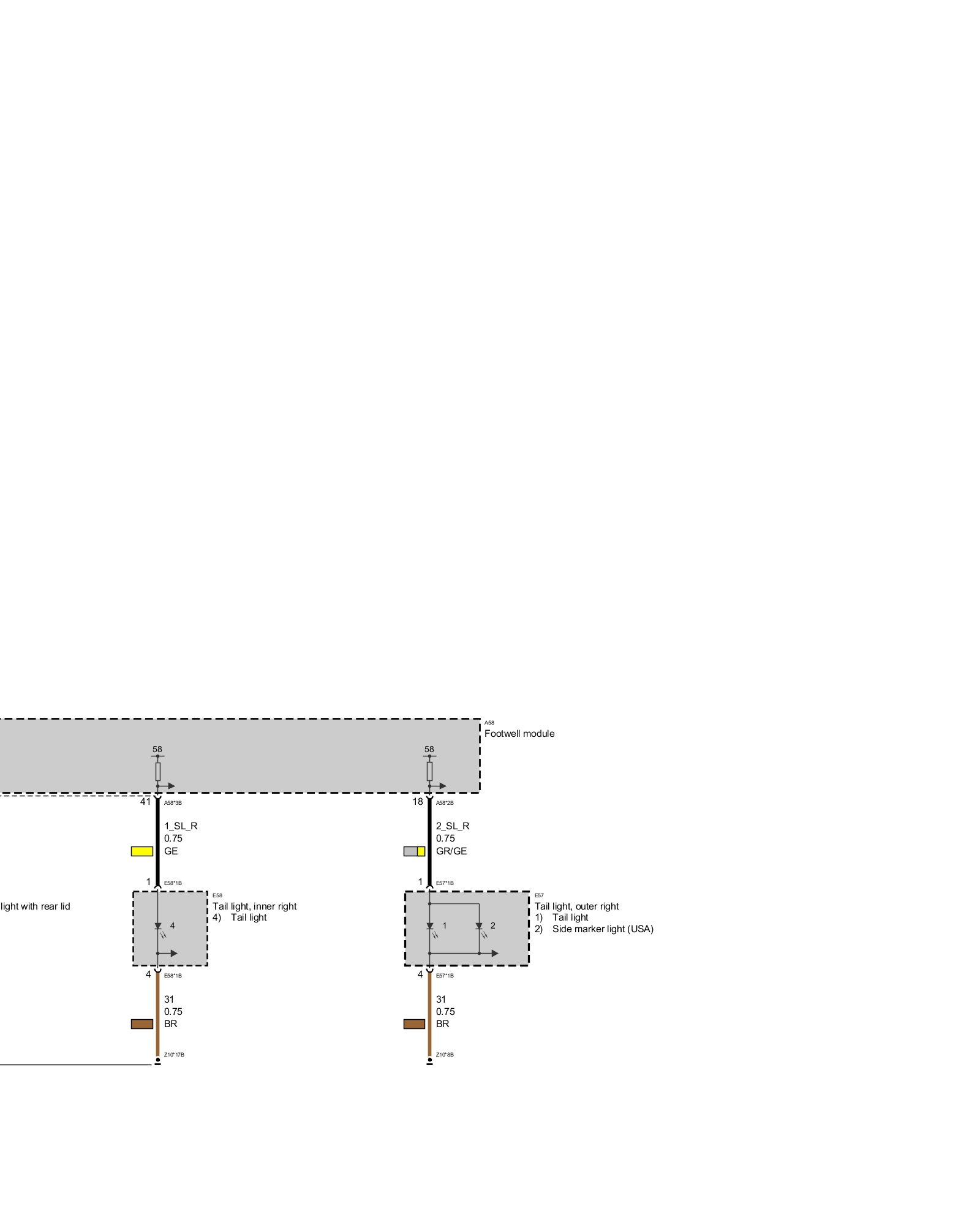

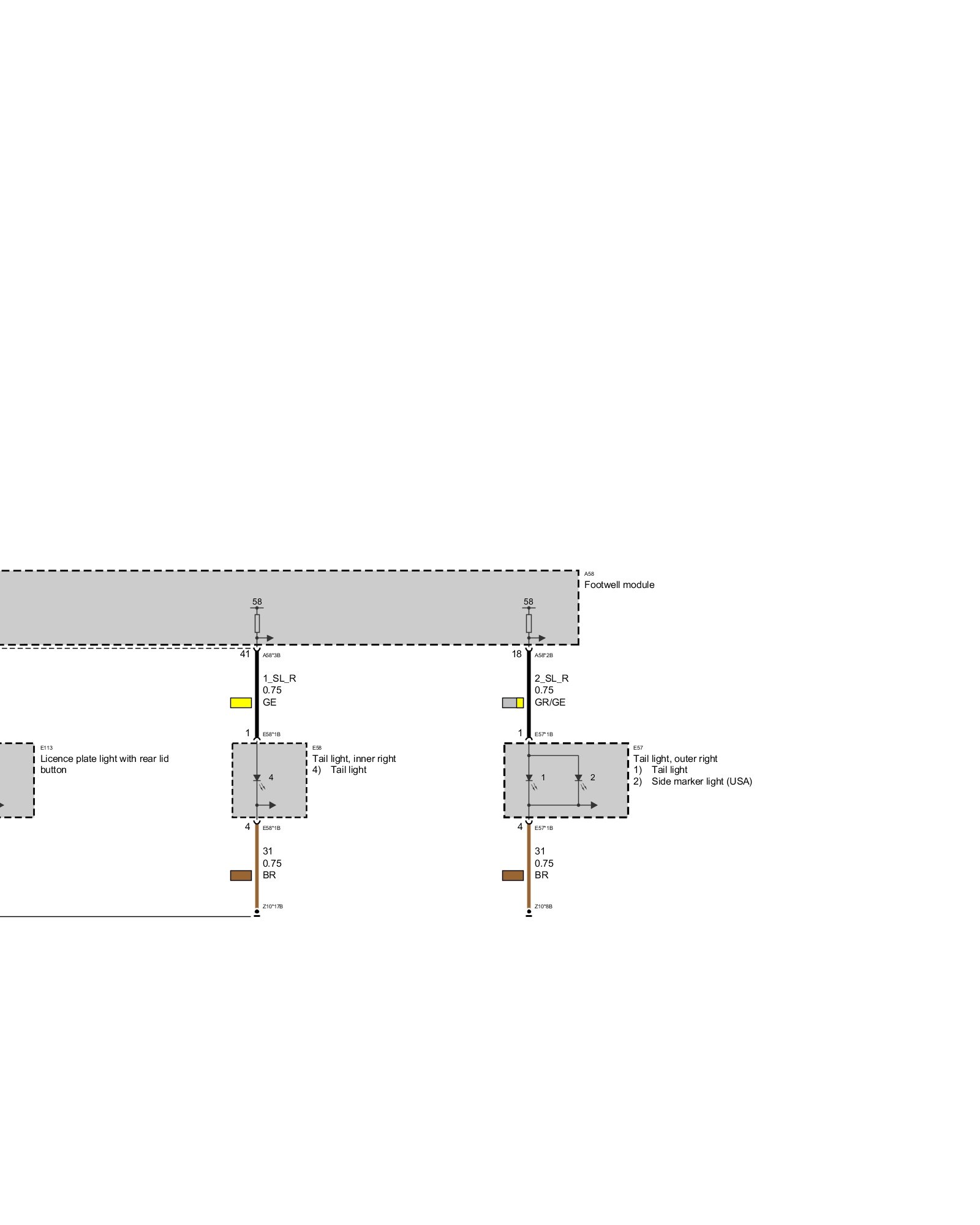

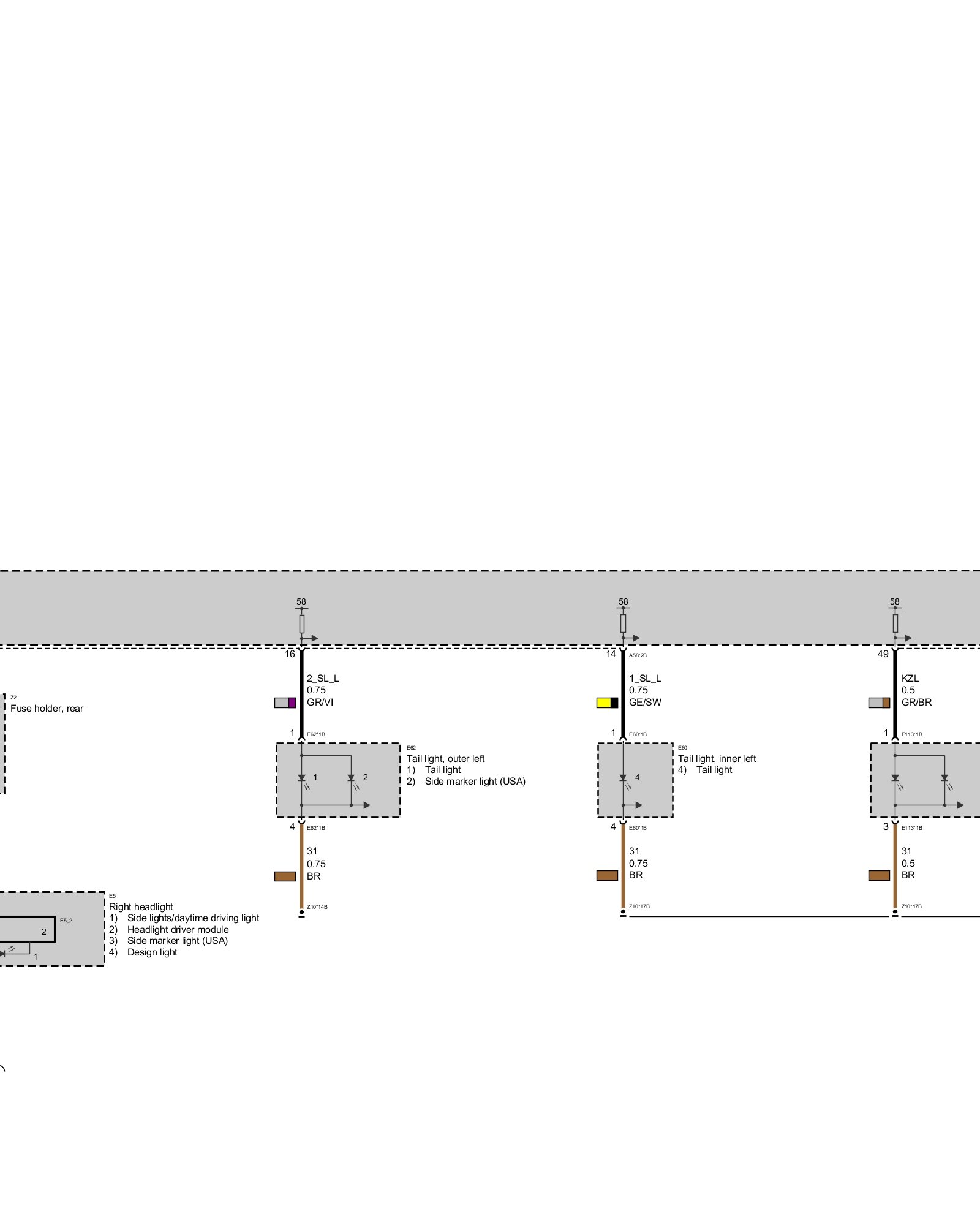

Side Lights, Parking Light
Side Lights, Parking Light
Side Lights, Parking Light
