64 11 ... Overview of Servodrives on Heater/Air Conditioner

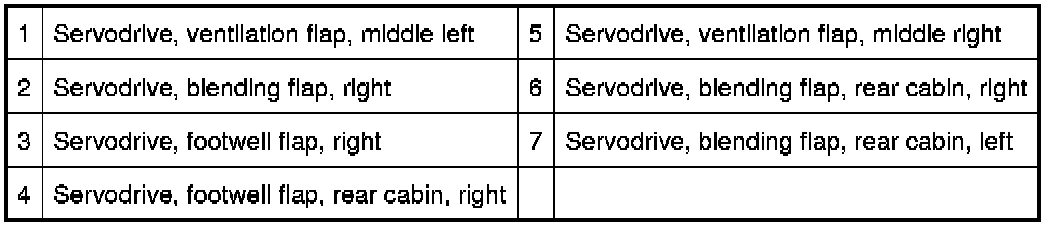

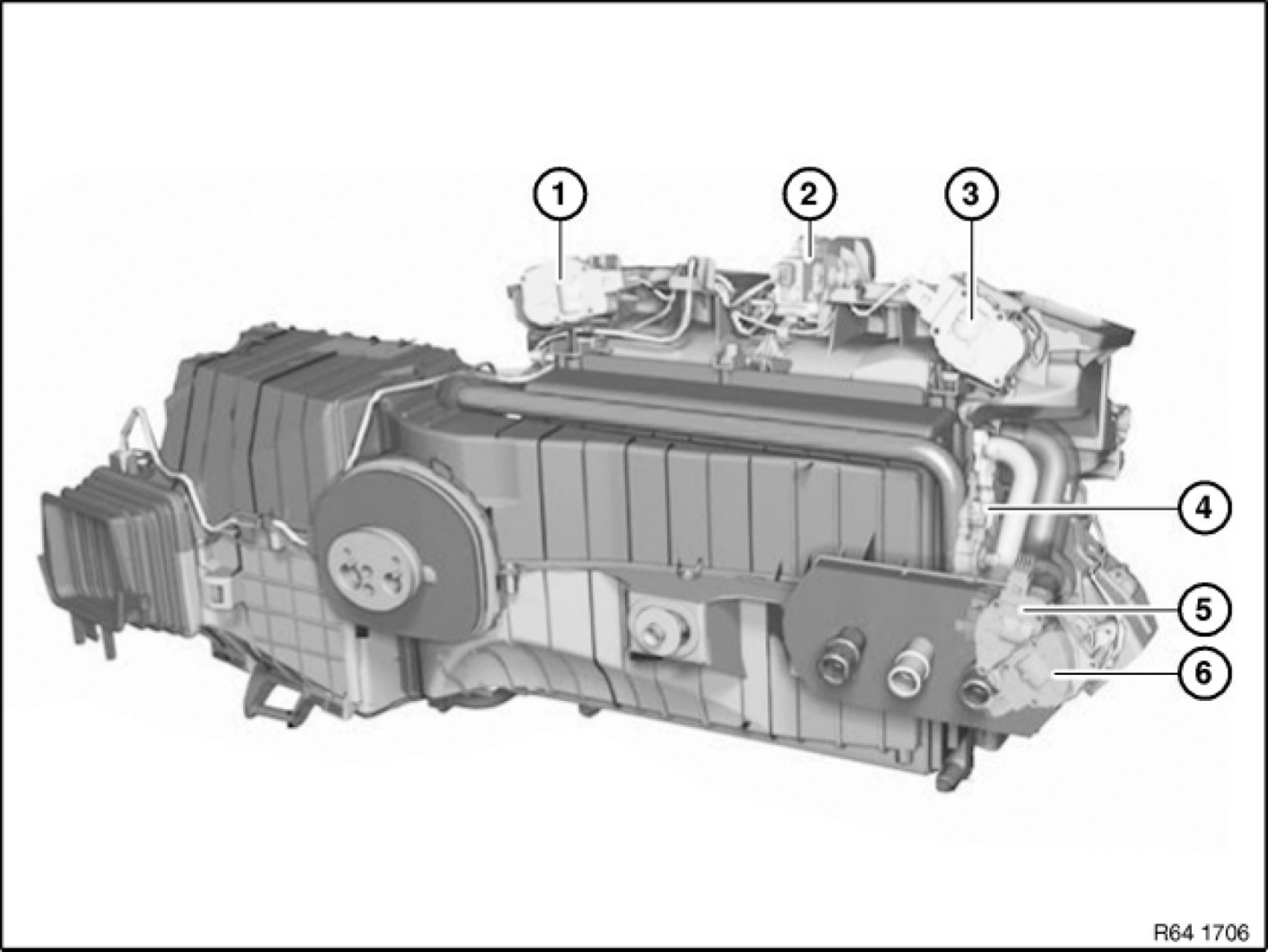

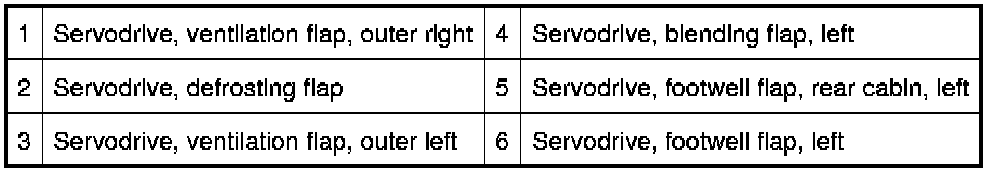

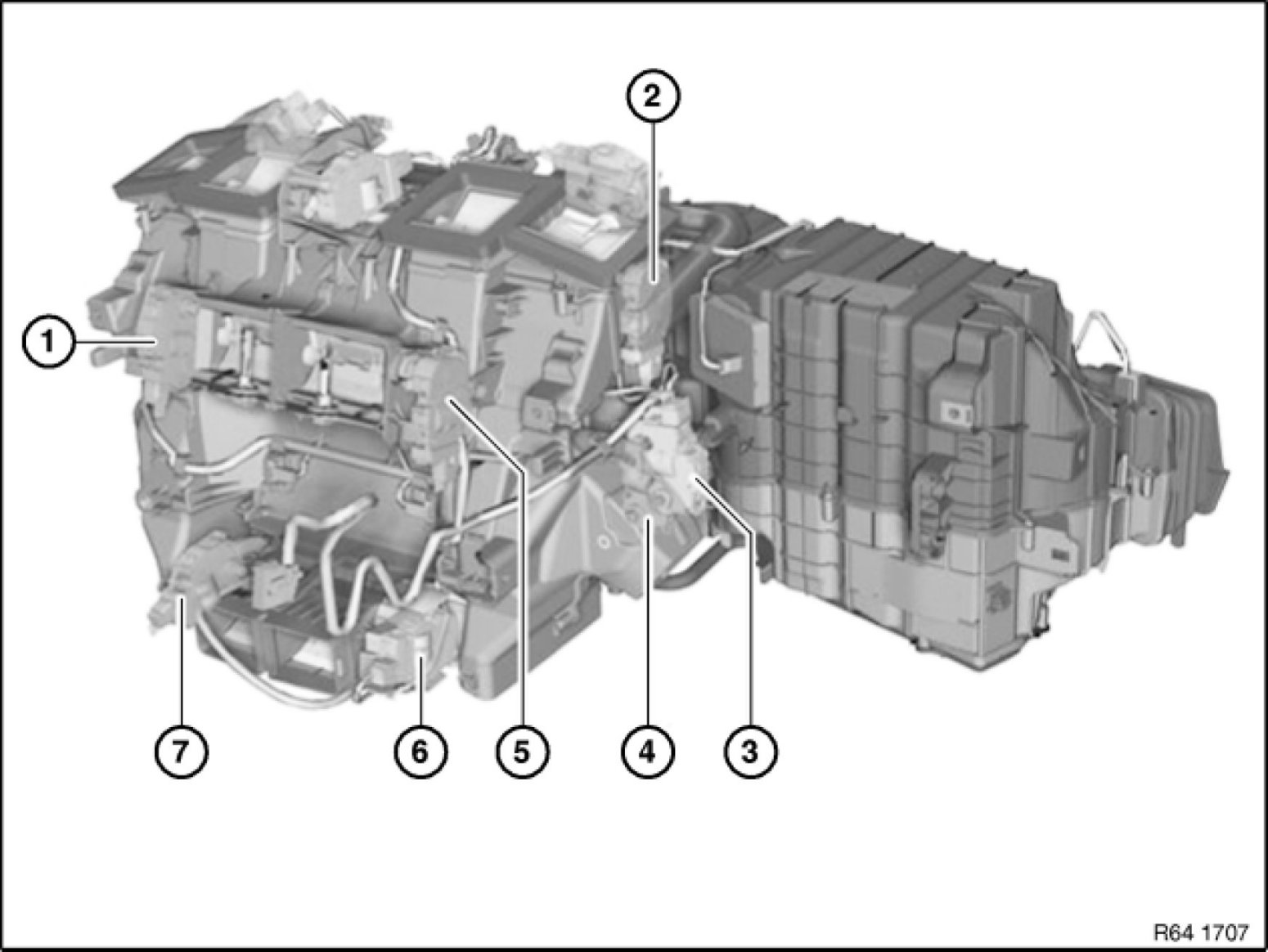

64 11 ... - Overview of servodrives on heater/air conditioner





Note:
The High equipment specification heater/air conditioner is pictured!









Note:
The High equipment specification heater/air conditioner is pictured!
