Television / Monitor: Service and Repair

65 50 125 Removing and installing/replacing left or right rear monitor







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Installation note:
- Remove rear passenger compartment monitor cover

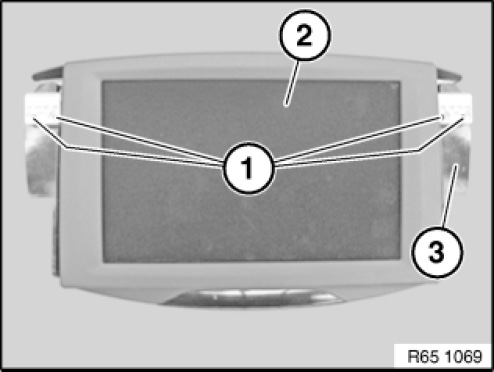

Release screws (1).

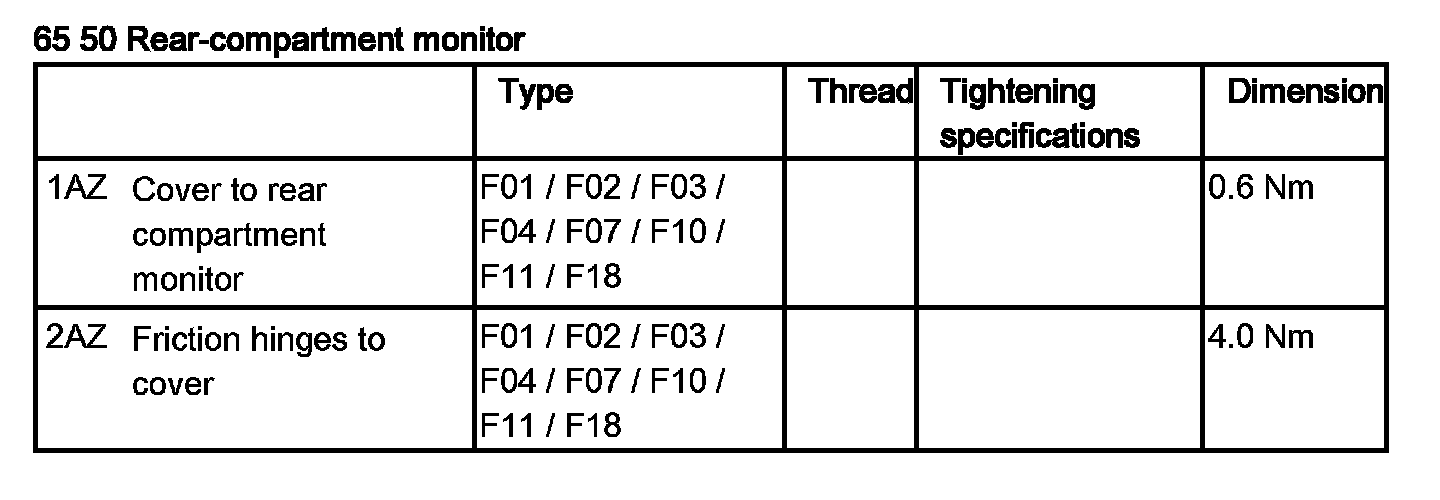

Tightening torque 65 50 2AZ.
Remove rear passenger compartment monitor (2) from holder (3).

Installation note:
Make sure rear passenger compartment monitor (2) is correctly seated on holder (3).







Unlock plug connections and disconnect.
Remove monitor in rear (1).







Replacement:
Carry out vehicle programming/coding.
