Quarter Window Glass Moulding / Trim: Service and Repair

51 36 056 Removing and installing/replacing trim strip on side window on rear left or right

Special tools required:







Necessary preliminary tasks:
- Remove trim strip from drip moulding

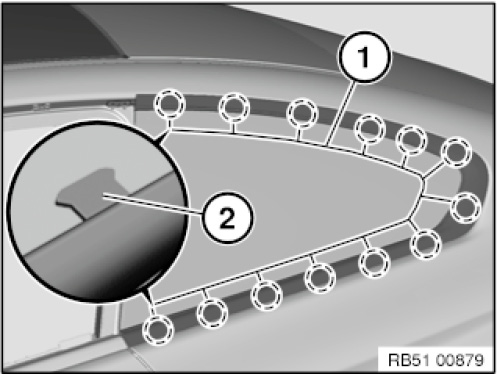

Starting at bottom, unclip trim strip (1) 00 9 325 from tabs (2) with special tool.

Installation note:
Tabs (2) on trim strip (1) must not be damaged or missing.







Release clip (1) on body (2) and trim strip (3).

Installation note:
Clip (1) must not be damaged or missing.
