Child Seat Tether Attachment: Service and Repair

72 14 ... Removing and installing/replacing top tether eyes for child seat







NOTE: Two or three top tether eyes can be installed depending on the model.

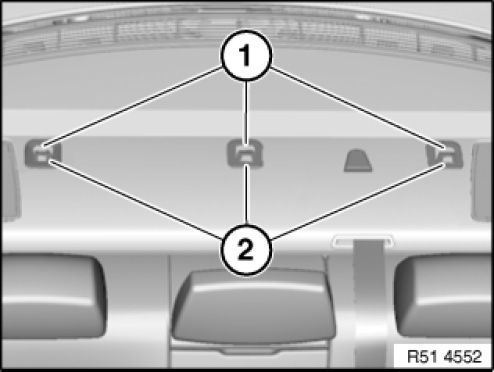

Release screws (1) and remove top tether eyes (2).
Tightening torque 72 11 24AZ.







IMPORTANT:

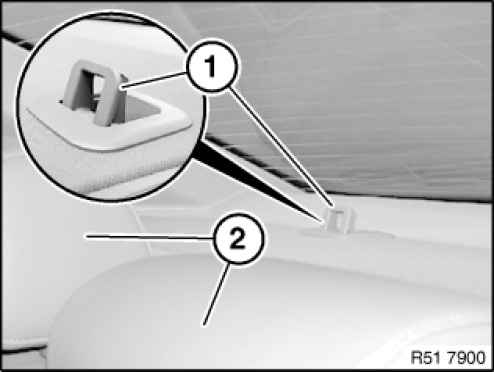

Make sure top tether eyes (1) are in correct installation position.
It must be possible to fold top tether eyes (1) in direction of head restraints (2).
