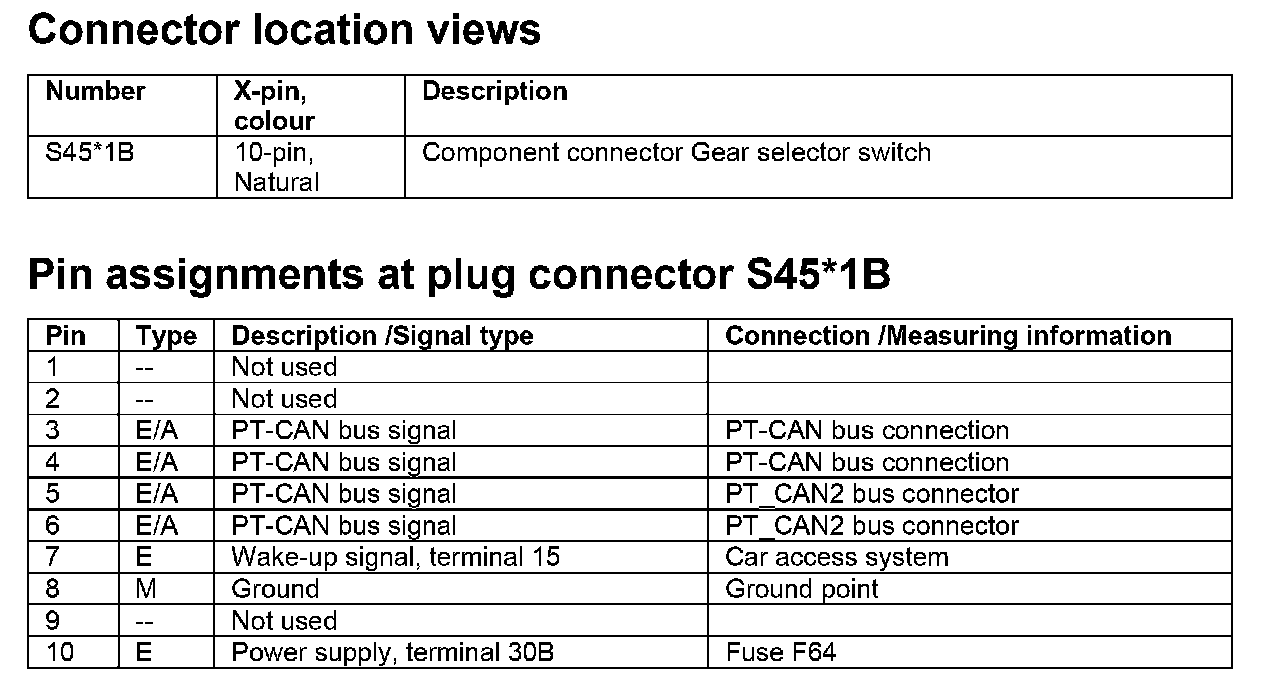

S45 Gear Selector Switch (W/O Center Console Control Panel)



S45*1B







S45 Gear Selector Switch
