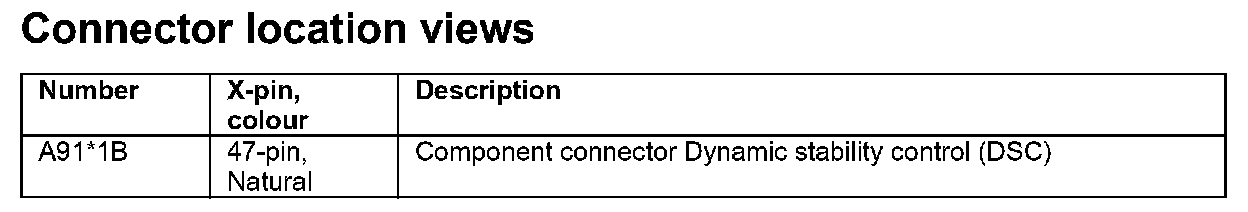

A91*1B
>>
Dynamic Stability Control (DSC) (W/ Telematics Control Unit)
Dynamic Stability Control (DSC) (W/ Telematics Control Unit)

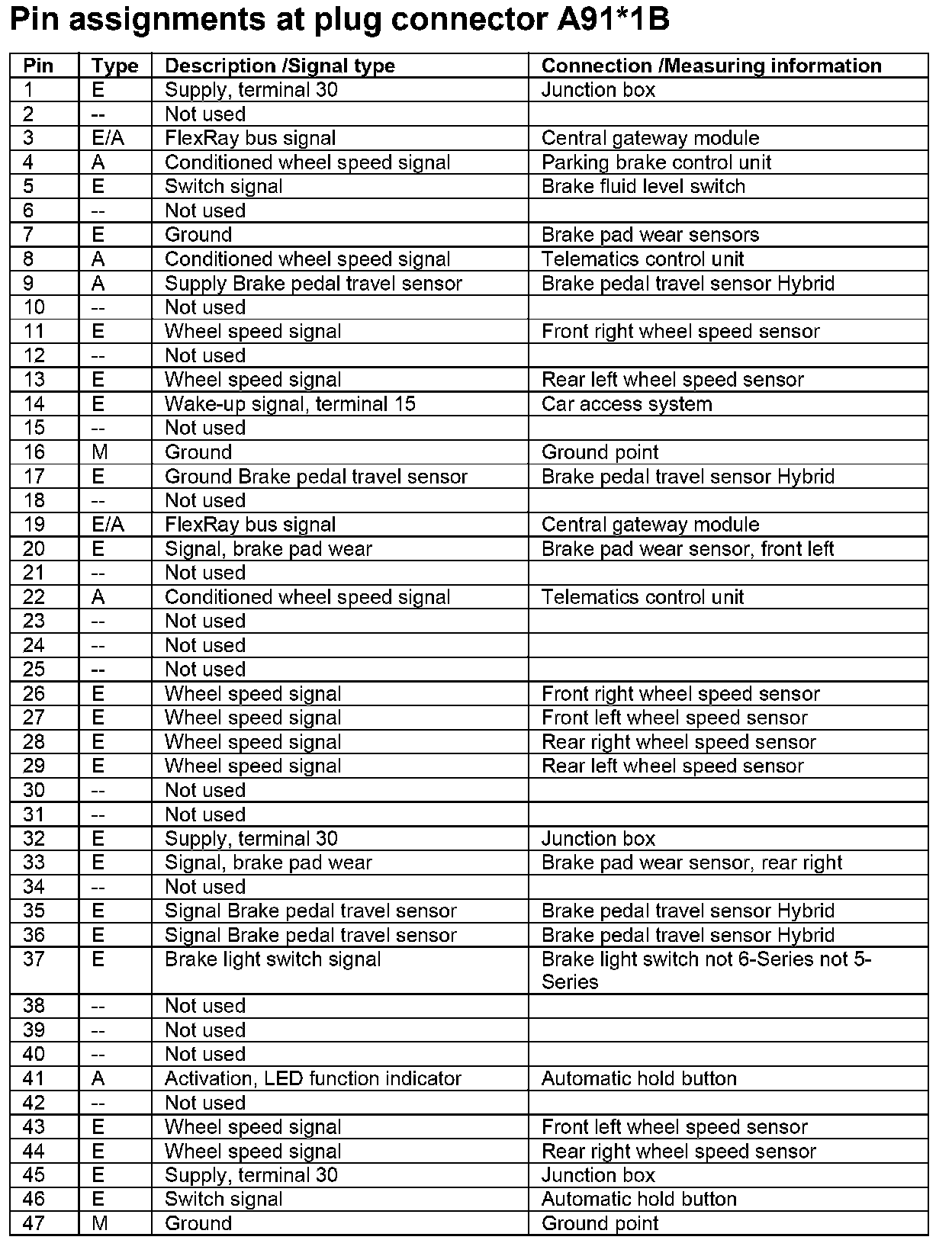

A91*1B
A91 Dynamic Stability Control (DSC)
