Sunroof / Moonroof Weatherstrip: Service and Repair

54 10 120 Replacing sealing for glass tilt sunroof cover







Necessary preliminary tasks:
- Remove glass tilt sunroof cover

NOTE: Follow repair instructions for bonded seals on glass slide/tilt sunroof.

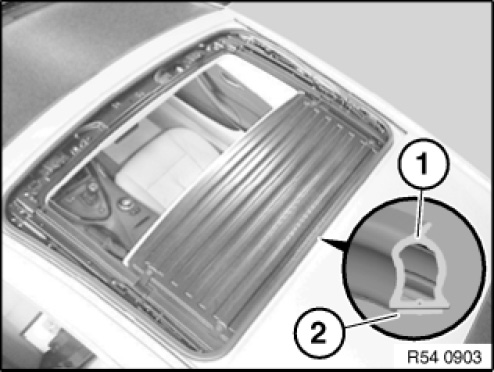

Pull off sealing (1) for glass tilt sunroof from body.

Installation note:
Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Department).
Partially pull off protective film from adhesive tape (2).
Press sealing (1) without stretching (squashing).
Stick on sealing (1) in sections.

IMPORTANT:
Do not touch bonding surface.
Surface temperature ≥ 20 °C
Incorrect bonding of the sealing will result in leaks.
