67 61 007 Removing and Installing/Replacing Electric Motor With Gearbox (Rear) For Slide/Tilt Sunroof

67 61 007 Removing and installing/replacing electric motor with gearbox (rear) for slide/tilt sunroof







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







Necessary preliminary tasks:
- Lower headlining

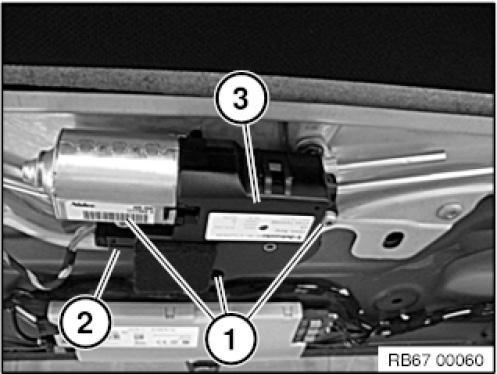

Disconnect plug connection (2) and if necessary expose cable.
Release screws (1) and remove electric motor (3).
Tightening torque 54 13 1AZ.







Installation note:

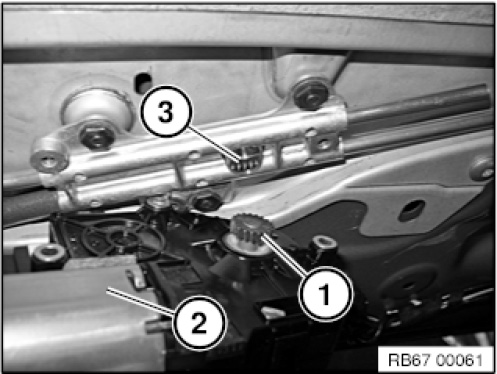

Engage gear (1) of electric motor (2) exactly in gearing (3).







Installation note:
Initialise slide/tilt sunroof.
