Sunroof / Moonroof Interior Trim Panel: Service and Repair



54 10 130 Removing and installing/replacing front cover







Necessary preliminary tasks:
- Remove gaiter on left and right

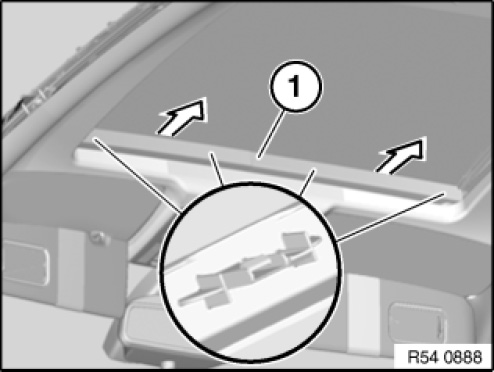

Unclip trim (1).

Installation note:
Replace cover (1) if clips are faulty.

Fixing prevents incorrect installation of cover (1).
