54 10 155 Removing and Installing / Replacing Rear Floating Roofliner

54 10 155 Removing and installing/replacing rear floating headlining







Necessary preliminary tasks:
- Remove front floating headlining:

IMPORTANT: Make sure that grease on the rails does not come into contact with the floating headlining.

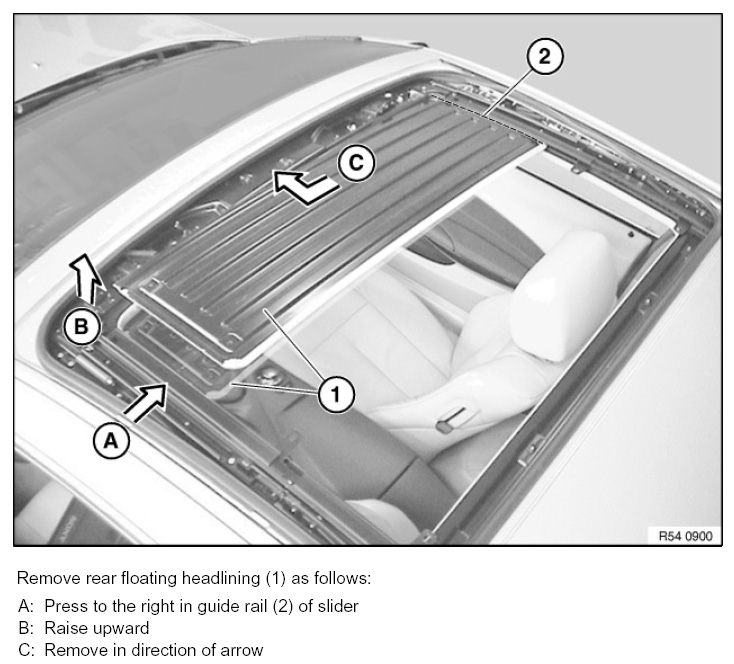

Move rear floating headlining (1) forwards (close).
Unfasten screws (2).
Tightening torque 54 10 03AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2

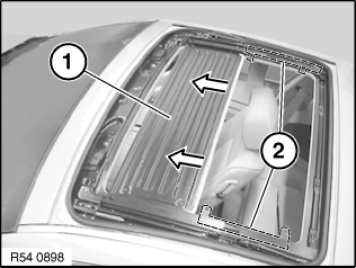

Slide floating headlining (1) uniformly forwards.

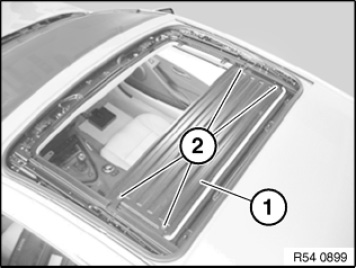

If necessary, raise slider (2) for front and rear floating headlining.
Move slider (2) back to the point where there is no longer any contact to the floating headlining (1).
