54 10 150 Removing and Installing/Replacing Front Floating Headlining

54 10 150 Removing and installing/replacing front floating headlining







Necessary preliminary tasks:
- Remove glass tilt sunroof cover

IMPORTANT: Make sure that grease on the rails does not come into contact with the floating headlining.

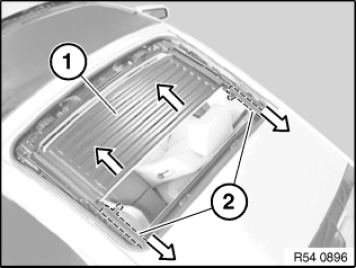

Open floating headlining (1) until screws (2) are still accessible.
Unfasten screws (2).
Tightening torque 54 10 03AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2

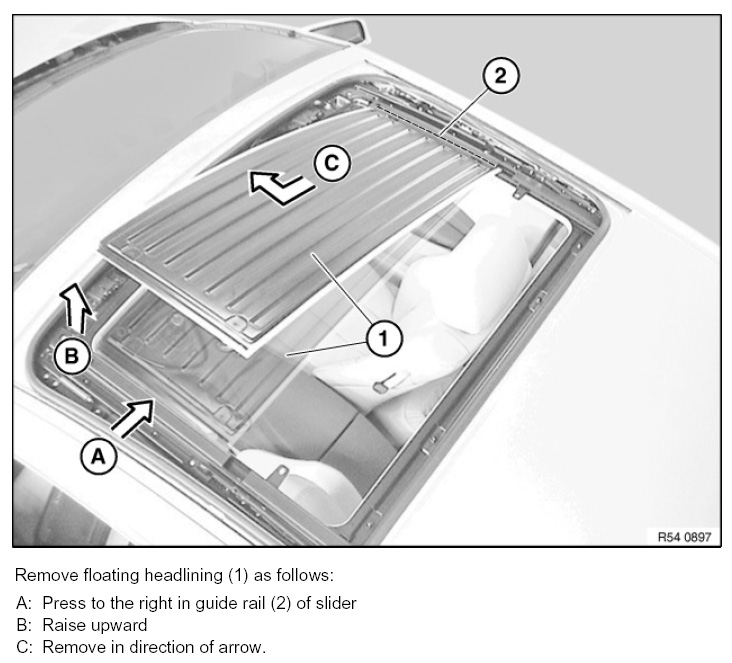

Slide floating headlining (1) uniformly forwards.
If necessary, raise slider (2) for floating headlining.
Move slider (2) back to the point where there is no longer any contact to the floating headlining.
