54 10 200 Removing and Installing Complete Glass Tilt Sunroof

54 10 200 Removing and installing complete glass tilt sunroof

Special tools required:







Necessary preliminary tasks:
- Lower headlining
- Release gas generator, left and right
- Remove glass tilt sunroof cover

IMPORTANT:
The assistance of a second person is required when removing the glass tilt sunroof.
Cover door sill with protective covers (risk of damage)
Do not damage any surrounding components when removing the glass tilt sunroof.
Removed glass tilt sunroof must only be placed on a level support.
Do not place glass tilt sunroof on cross members.
Place glass tilt sunroof broadly across side frame.







IMPORTANT: Read and comply with notes on protection against damage from electrostatic discharge (ESD protection).







IMPORTANT: Airbag leads must not be damaged.

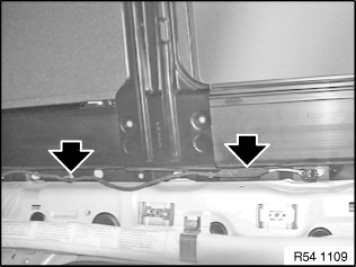

Unclip airbag lead from glass slide/tilt sunroof frame.

Installation note:
Lay airbag lead without tension or kinks.

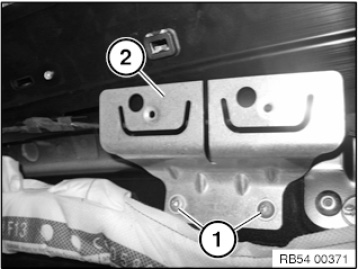

Release screws (1).
Remove holder (2) for mounting headlining.

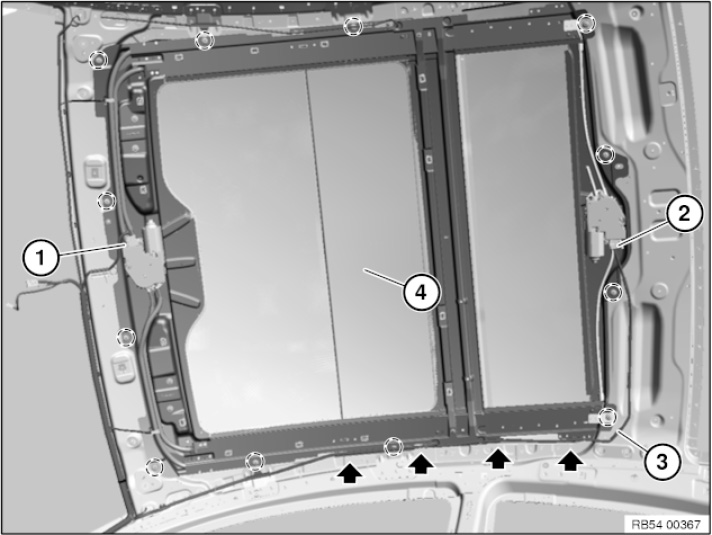

- Unlock and disconnect connector for drive unit for floating headlining (1) and glass tilt sunroof cover (2).
- Unclip wiring harness (3).
- Use supports to secure glass tilt sunroof in front section against falling.
- Release screws in marked area from rear to front.
Tightening torque: 54 10 02AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2
- Remove slide/tilt sunroof (4) completely (through front door).







IMPORTANT: Do not crush any cables when installing the glass slide/tilt sunroof.

Installation note:
To align glass tilt sunroof to body aperture, insert screws and tighten loosely.
Glass tilt sunroof must still be able to move in the body aperture.
On account of leaks, glass tilt sunroof must be exactly aligned to body aperture.

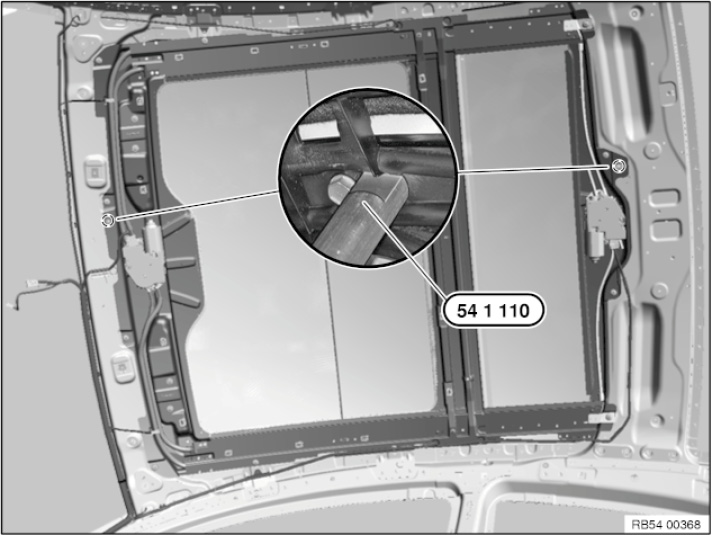

Insert special tool 54 1 110 into centring bore up to limit position in slide/tilt sunroof unit and body.
Tighten down screws.
Tightening torque 54 10 02AZ. 00 00 Excerpt From Company Standard BMW GS 90003-2
Initialise glass slide/tilt sunroof.
