51 43 148 Removing and Installing or Replacing Trim Panel on Left or Right Door Post (Top)

51 43 148 Removing and installing or replacing trim panel on left or right door post (top)







Partially loosen edge protection (1).

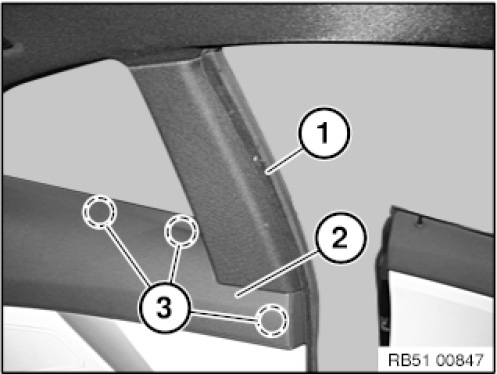

Release side trim panel (2) at clips (3).

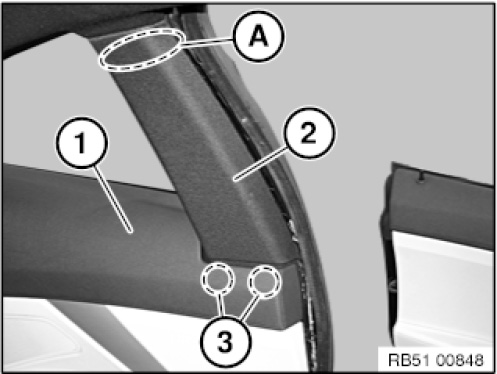

Pull side trim panel (1) slightly inwards and release trim panel (2) from clips (3).
Firstly thread out trim panel (2) downwards out of guides in area (A) then remove upwards out of side trim panel (1).







Installation note:

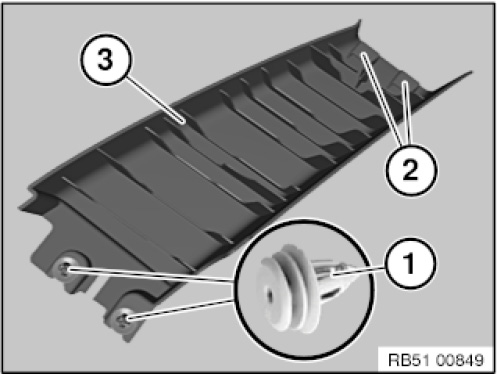

Clips (1) and guides (2) of trim panel (3) must not be damaged or missing.
