65 13 195 Removing and Installing/Replacing Rear Tweeter (In Storage Shelf)

65 13 195 Removing and installing/replacing rear tweeter (in storage shelf)

Special tools required:

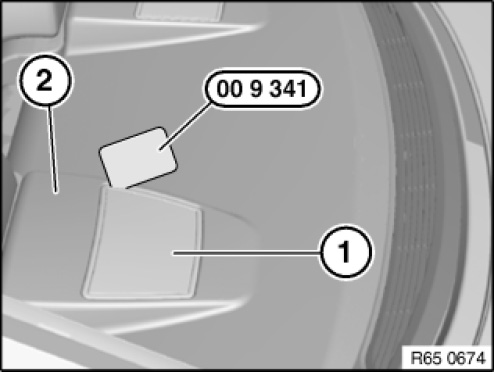

Lift speaker cover (1) out of storage shelf (2) using special tool 00 9 341.







Installation note:

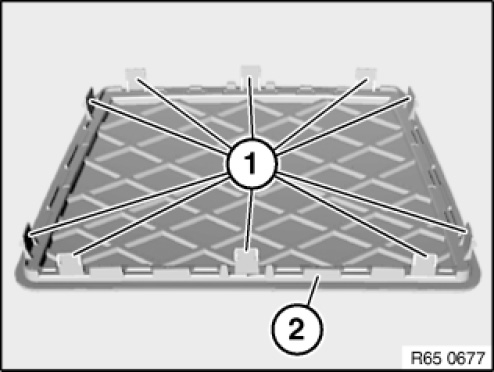

Retaining lugs (1) on speaker cover (2) must not be damaged.
Replace speaker cover (2) if damaged.
Make sure speaker cover (2) is fully engaged.

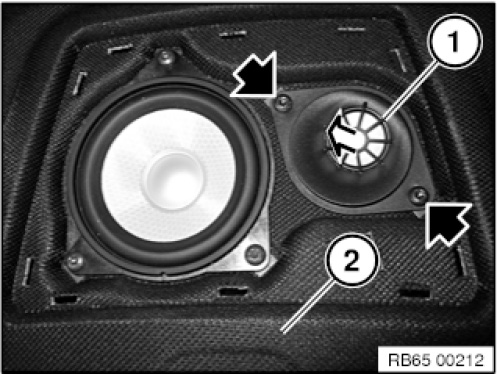

Release screws at marked points.
Remove tweeter (1) upwards from storage shelf (2).
Disconnect associated plug connection and remove tweeter (1).
