65 13 188 Removing and Installing/Replacing Rear Mid-Range Speaker (In Storage Shelf)

65 13 188 Removing and installing/replacing rear mid-range speaker (in storage shelf)

Special tools required:

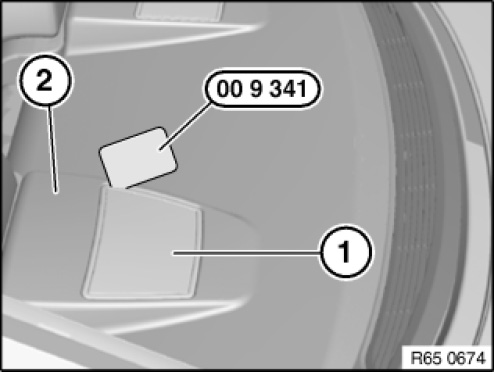

Lift speaker cover (1) out of storage shelf (2) using special tool 00 9 341.







Installation note:

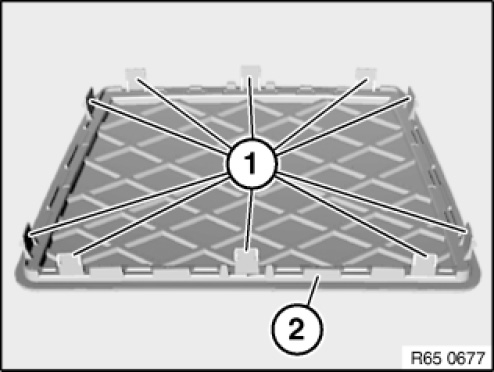

Retaining lugs (1) on speaker cover (2) must not be damaged.
Replace speaker cover (2) if damaged.
Make sure speaker cover (2) is fully engaged.

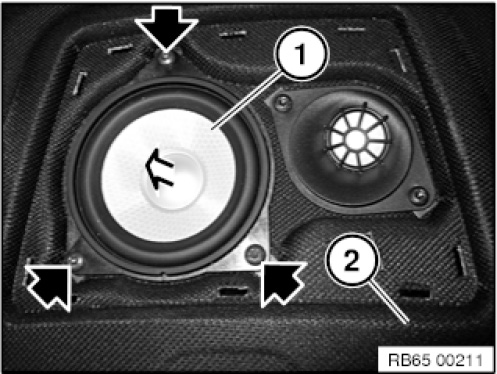

Release screws at marked points.
Remove mid-range speaker (1) upwards from storage shelf (2).
Disconnect associated plug connection and remove mid-range speaker (1).
