84 31 550 Removing and Installing/Replacing Hands-Free Microphone, Driver's Side



84 31 550 Removing and installing/replacing hands-free microphone, driver's side

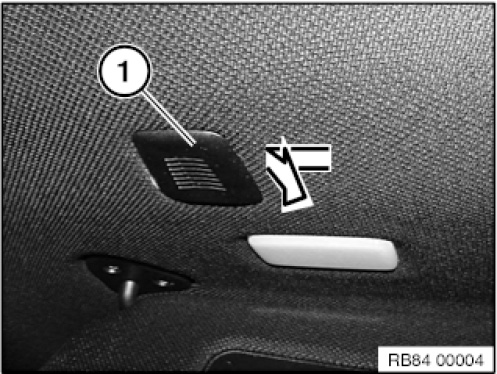

Lever out microphone (1) in direction of arrow.

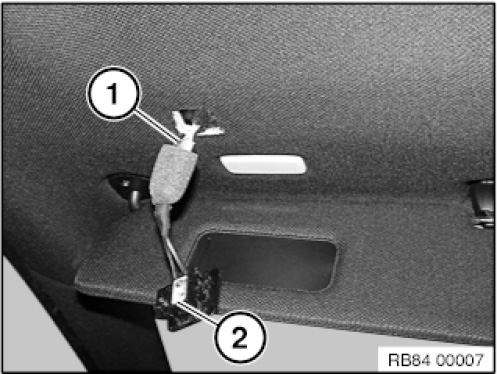

Disconnect plug connection (1) and remove microphone (2).
