Antenna Amplifier: Service and Repair

65 20 090 Removing and installing/renewing aerial amplifier (aerial diversity)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

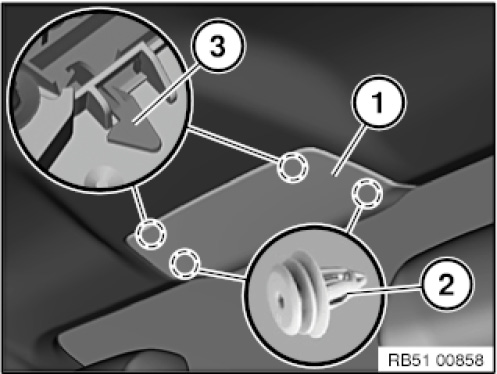

Release cover (1) from clips (2).
Release cover (1) from latch mechanisms (3) towards rear window and remove.

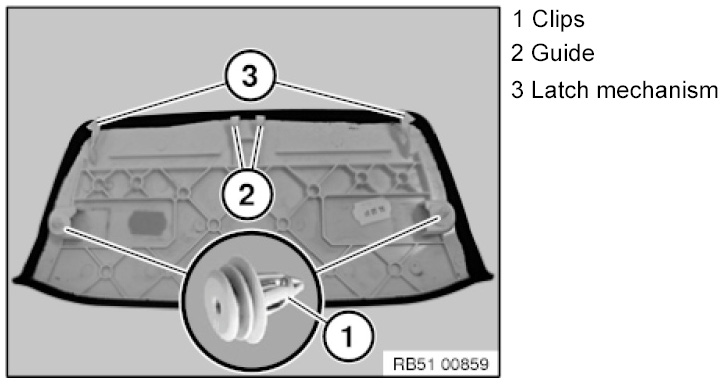

Installation note:
Following parts of cover must not be damaged or missing.
1 Clips
2 Guide
3 Latch mechanism

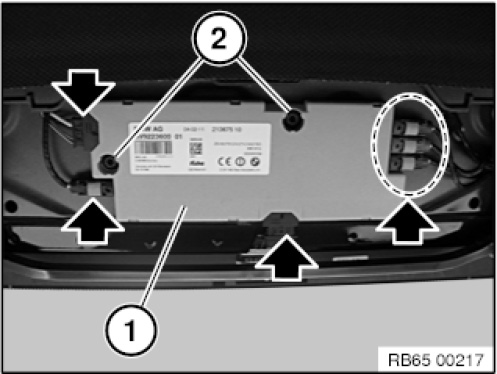

Unlock and disconnect plug connections at marked points.
Unfasten screws (2).
Remove aerial amplifier (1).
