65 20 250 Removing and Installing/Replacing Rear Telephone Aerial



65 20 250 Removing and installing/replacing rear telephone aerial







Necessary preliminary work:
- Remove rear bumper trim

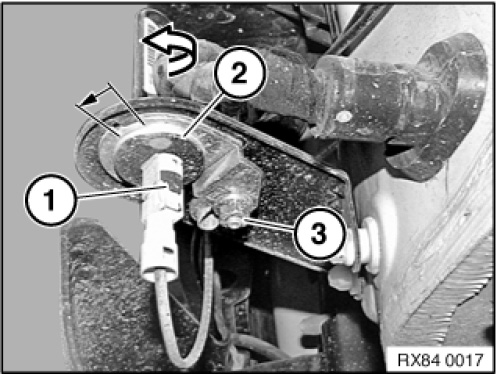

Disconnect plug connection (1).
Unscrew nut (3).
Turn GSM aerial (2) in direction of arrow and then remove toward the bottom.
