32 41 314 Replacing Suction Line For Power Steering (From Fluid Reservoir to Connecting Piece)

32 41 314 Replacing suction line for power steering (from fluid reservoir to connecting piece)





Warning!
Danger of poisoning if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable container.





Necessary preliminary tasks:
^ Draw off and dispose of hydraulic fluid from fluid reservoir
^ Remove fluid reservoir from body
^ Remove raw-air supply on left

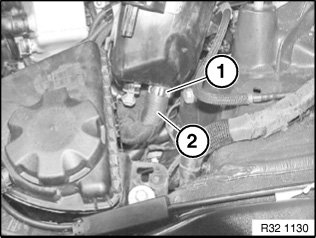

Unfasten hose clip (1).

Disconnect suction line (2) from fluid reservoir.

Installation:
Markings on fluid reservoir and suction line must match up.

Replace hose clamp.

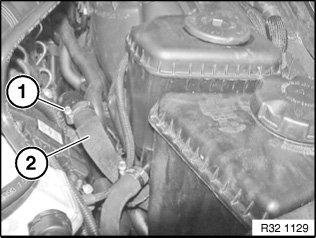

Unfasten hose clip (1).

Remove suction line (2).

Installation:
Replace hose clamp.

Make sure suction line is laid without tension and with sufficient spacing to adjoining components.

After installation:





^ Fill and bleed hydraulic system
^ Check pipe connections for leaks
