61 14 010 Removing and Installing/Replacing Distribution Box (on Battery)

61 14 010 - Removing and installing/replacing distribution box (on battery)





Warning!
Observe safety instructions for handling vehicle battery.





Necessary preliminary tasks:
- Remove luggage compartment trim on side panel on right
- Disconnect battery negative lead

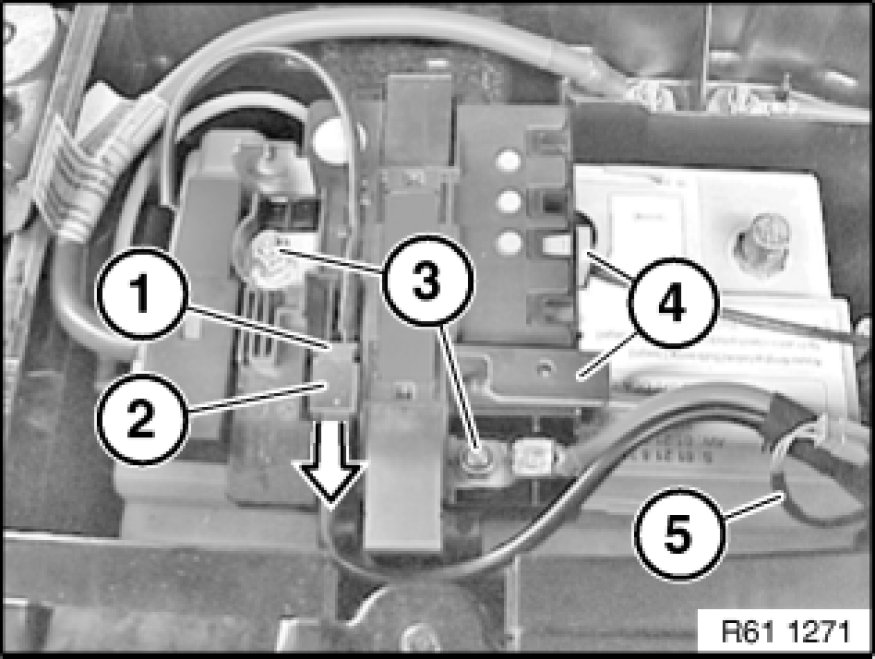

Release screws (1) and remove bracket (2). Tightening torque 61 14 1AZ .





Disconnect plug connection (1).
Unlock plug housing (2) and release in direction of arrow.
Fold up covers on nuts (3).
Unscrew nuts (3). Tightening torque 61 21 2AZ .
Disconnect plug connection (4).
Disconnect plug connection of IBS cable (5).

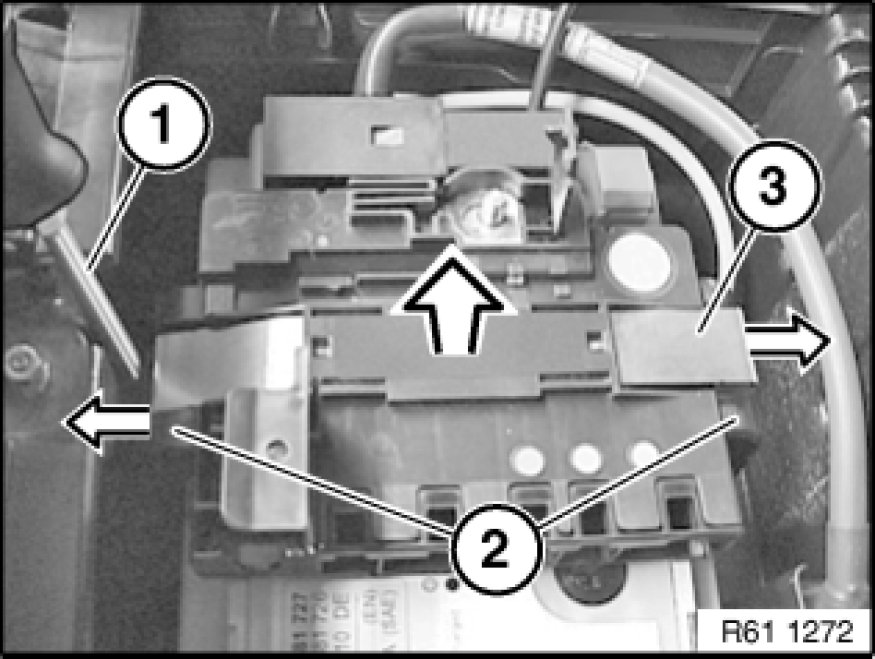

Press locking brackets (2) downwards and unclip.
If necessary, using a screwdriver (1), expand locking bracket (2) at lower end and clip out.
Remove power distributor (3) towards top.
