Strut Mount: Service and Repair

31 33 001 (Removing And Installing) Replacing Front Left Or Right Spring Strut Support Bearing







NOTE: Procedure is described in the document "Replacing front left or right spring strut".

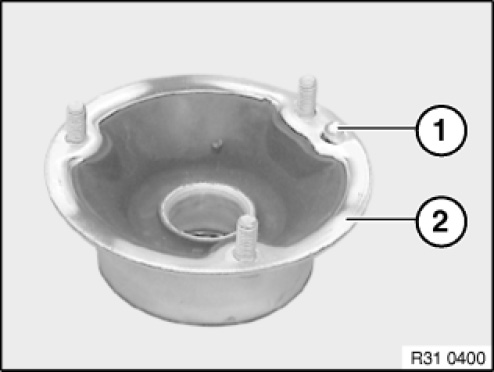

If necessary, twist/drive out centring pin (1)

NOTE: If a support bearing (2) was fitted without centring pin (1), the centring pin (1) of the new support bearing (2) must be driven or twisted out.







After installation:
- If a support bearing is installed
