32 31 241 Replacing Steering Column Adjustment Lever




32 31 241 - Replacing adjusting lever for steering column





Necessary preliminary tasks:
- Remove steering column 32 31 090 Removing and Installing/Replacing Steering Column





If necessary, remove cable duct from steering column.

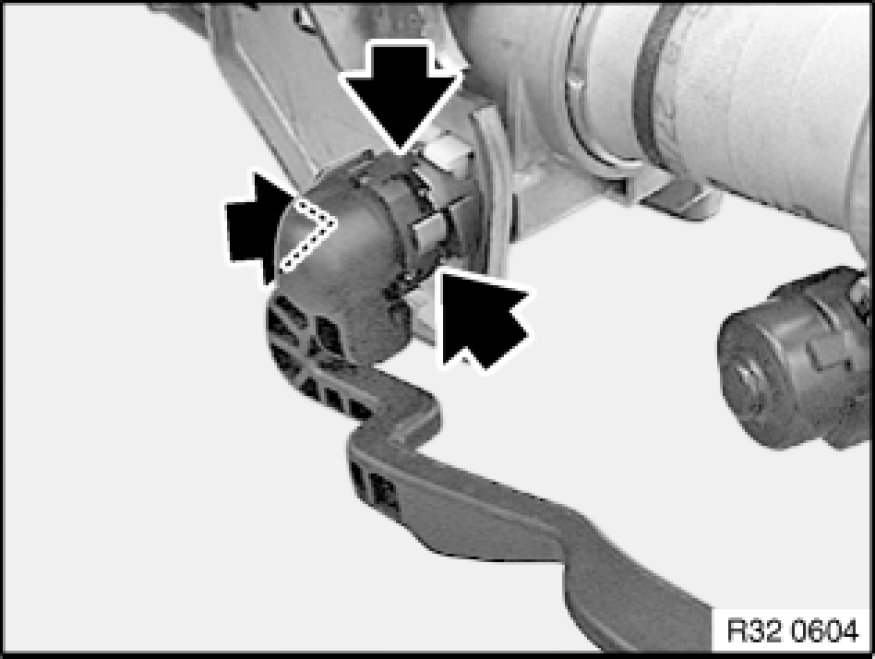

Unclip adjusting lever.

Installation:
Align adjusting lever to steering column and attach straight to prevent the locks from being damaged.
Check locks after attachment, replace adjusting lever if necessary.
