51 12 825 Removing and Installing/Replacing Guide for Rear Centre Bumper




51 12 825 - Removing and installing/replacing guide for rear centre bumper





Necessary preliminary tasks:
- Remove rear bumper trim

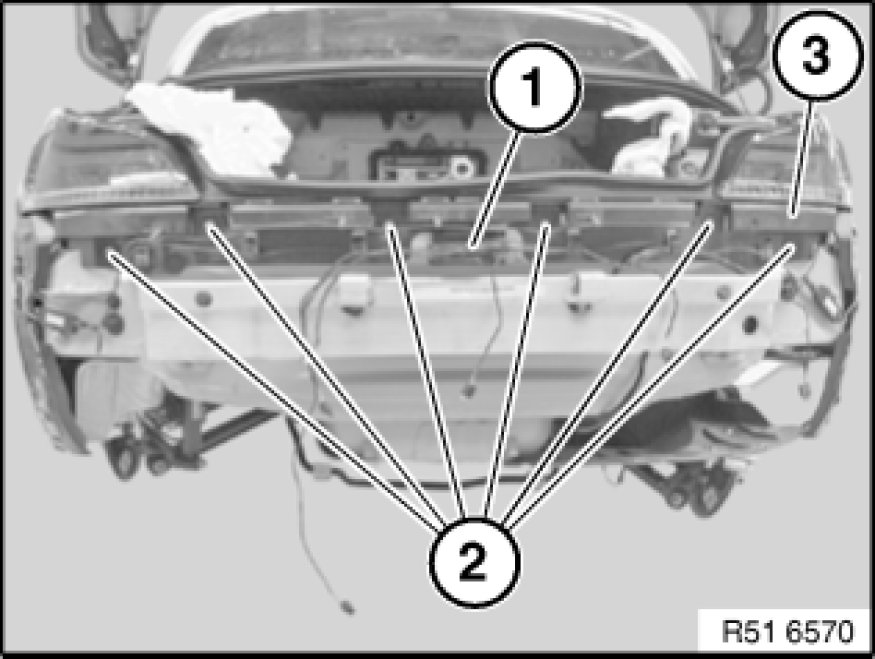

Detach wiring harness (1).
Unfasten screws (2).
Remove guide for bumper (3).
