65 20 165 Removing and Installing/Replacing Left TV Aerial




65 20 165 - Removing and installing/replacing left TV aerial





Necessary preliminary tasks:
- Remove rear bumper trim

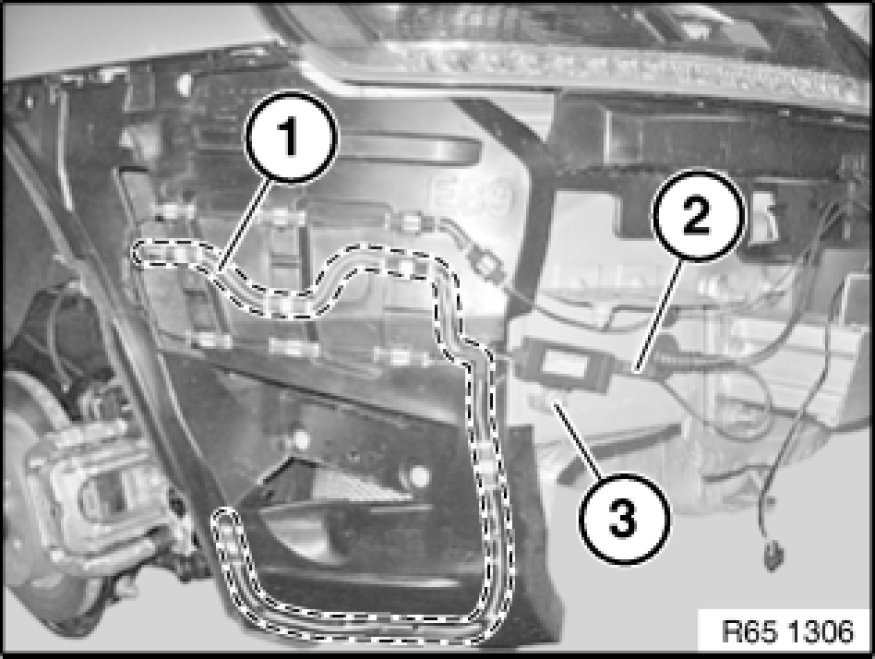

Unclip TV aerial (1).
Unfasten plug connection (2) and disconnect.
Release screw (3).
Remove TV aerial (1).

Installation:
Make sure TV aerial (1) is correctly laid.
