65 20 250 Removing and Installing/Replacing Rear Telephone Aerial



65 20 250 Removing And Installing/replacing Rear Telephone Aerial







Necessary preliminary tasks:
- Remove rear bumper trim

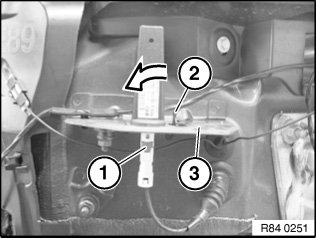

Unfasten plug connection (1) and disconnect.
Unlock telephone aerial (2).
Remove telephone aerial (2) from bracket (3).

Installation:
Make sure telephone aerial (2) is correctly seated.
