32 31 102 Replacing Steering Spindle Sleeve

32 31 102 Replacing Steering Shaft Sleeve







Necessary preliminary tasks:
- Undo steering shaft at the steering column (in engine compartment)
- Put steering column in position "top" and "expanded"
- Remove trim panel for pedal mechanism

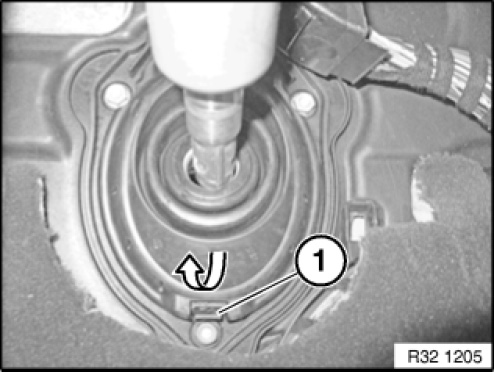

Press lock (1) downwards and remove sleeve.

Installation note:
First insert sleeve in top of guide and clip in at the bottom.
Sleeve must snap audibly into place.
