61 12 200 Replacing Wiring Harness In Left or Right Front Door

61 12 200 - Replacing wiring harness in left or right front door





Necessary preliminary tasks:
- Close front side window completely
- Remove front door trim
- Remove sound insulation in front door





Release screws (1).
Disconnect plug connections (2).
Cut open cable fastener (3).
Remove speaker holder (4).

Installation:
Make sure door wiring harness is correctly laid.

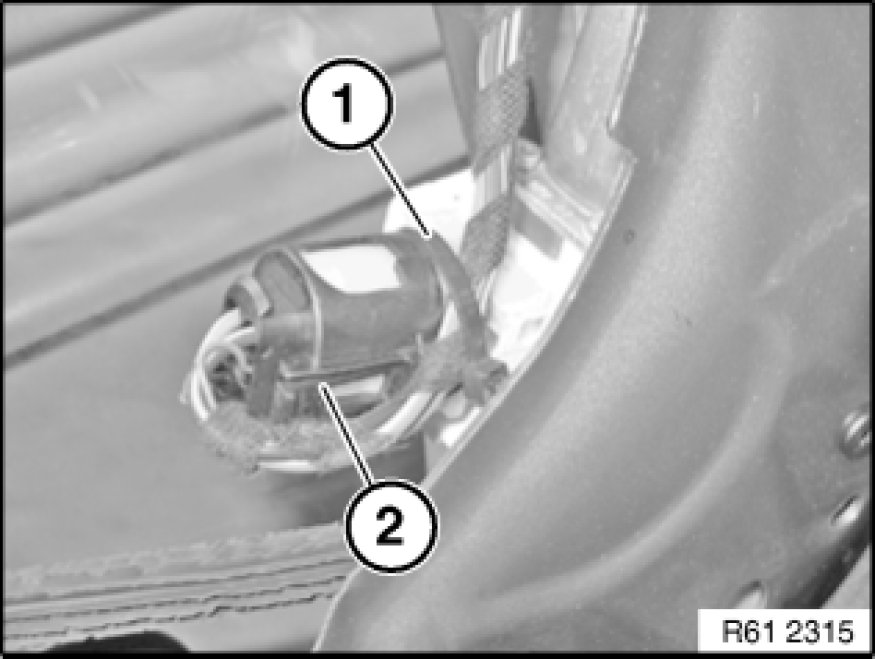

Release cable tie (1).
Unfasten plug connection (2) and disconnect.

Installation:
Replace cable tie (1).





Note:
Front side panel shown removed for purposes of clarity.

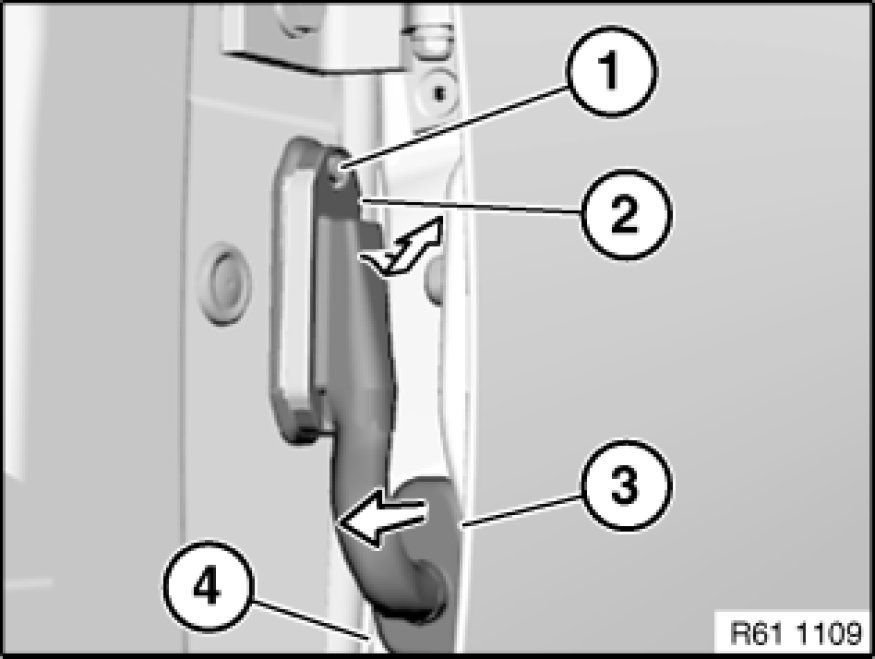

Release screw (1), fold door wiring harness plug on A-pillar (2) downwards slightly and remove.

Unlock plug connection behind and disconnect.
Pull rubber grommet (3) in direction of arrow out of front door (4).
Feed out door wiring harness towards front to A-pillar and remove.
