Evaporator Temperature Sensor / Switch: Service and Repair




64 11 943 - Replacing evaporator temperature sensor





Necessary preliminary tasks:
- Partially remove evaporator Service and Repair

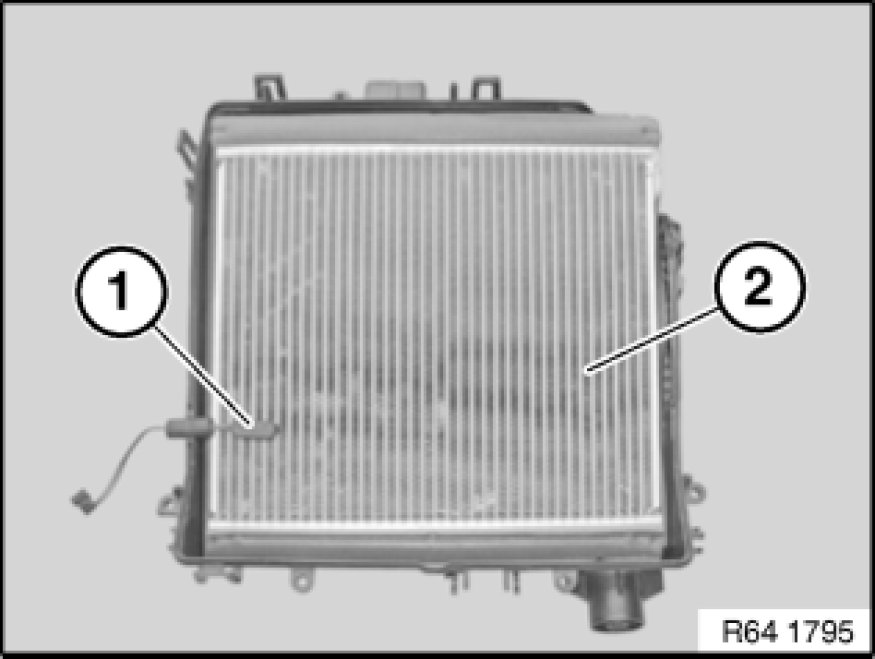

Lever evaporator temperature sensor (1) out of corresponding guides on evaporator (2).
