64 11 909 Removing and Installing/Replacing Footwell Temperature Sensor

64 11 909 Removing And Installing/replacing Footwell Temperature Sensor







Necessary preliminary tasks:
- Remove trim for instrument panel at bottom left

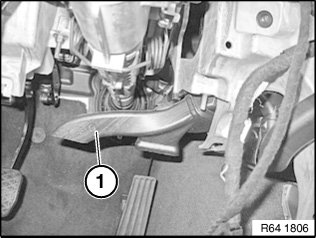

Remove footwell duct (1).

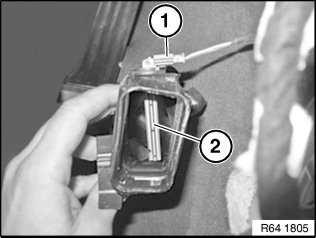

Disconnect plug connection (1).
Turn temperature sensor (2) at plug socket as far as it will go.
Feed temperature sensor (2) out of footwell duct.

Installation:
Make sure temperature sensor (2) is correctly engaged in footwell duct.
