64 11 906 Removing and Installing/Renewing Ventilation Temperature Sensor

64 11 906 - Removing and installing/replacing ventilation temperature sensor (middle fresh-air grille)





Necessary preliminary tasks:
- Remove centre fresh air grille 64 22 165 Removing and Installing Or Replacing Middle Fresh-Air Grille

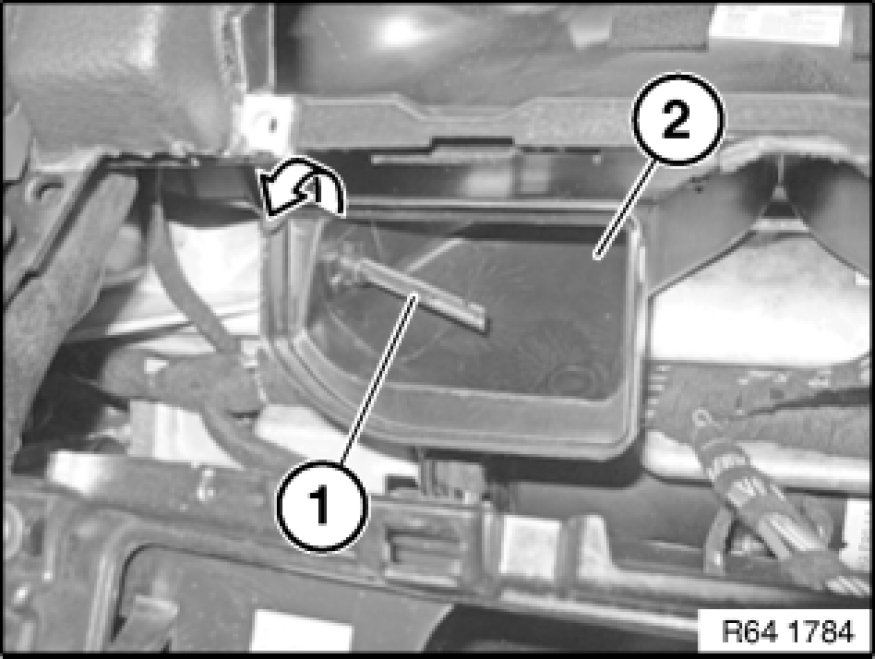

Turn temperature sensor (1) on plug socket in direction of arrow as far as it will go.
Feed temperature sensor (1) out of fresh-air duct (2).
Disconnect associated plug connection.

Installation:
Make sure temperature sensor (1) is correctly engaged in fresh-air duct (2).
