51 75 515 Removing and Installing/Replacing Lower Pedestrian Protection




51 75 515 - Removing and installing/replacing lower pedestrian protection





Necessary preliminary tasks:
- Remove front underbody protection 51 47 490 Removing and Installing/Replacing Front Underbody Protection

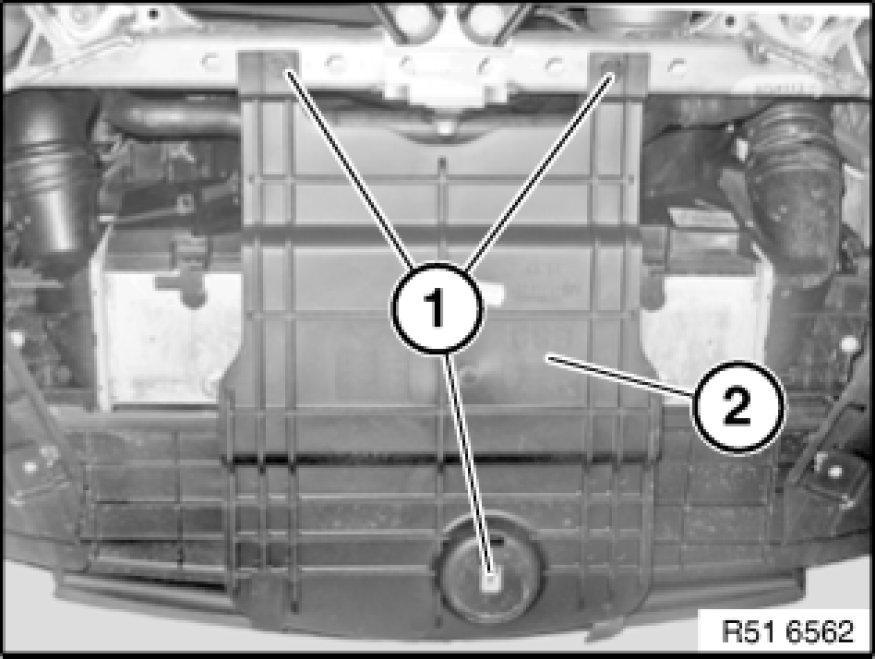

Release screws (1).
Remove pedestrian protection (2).
