52 14 ... Carrier For Outer Cover on Left or Right Front Seat (Electric)

52 14 ... - Removing and installing carrier for outer cover on left or right front seat (electric)





Necessary preliminary tasks:
- Remove outer cover 52 14 040 Outer Cover on Front Left or Right Seat (Normal/Electric)

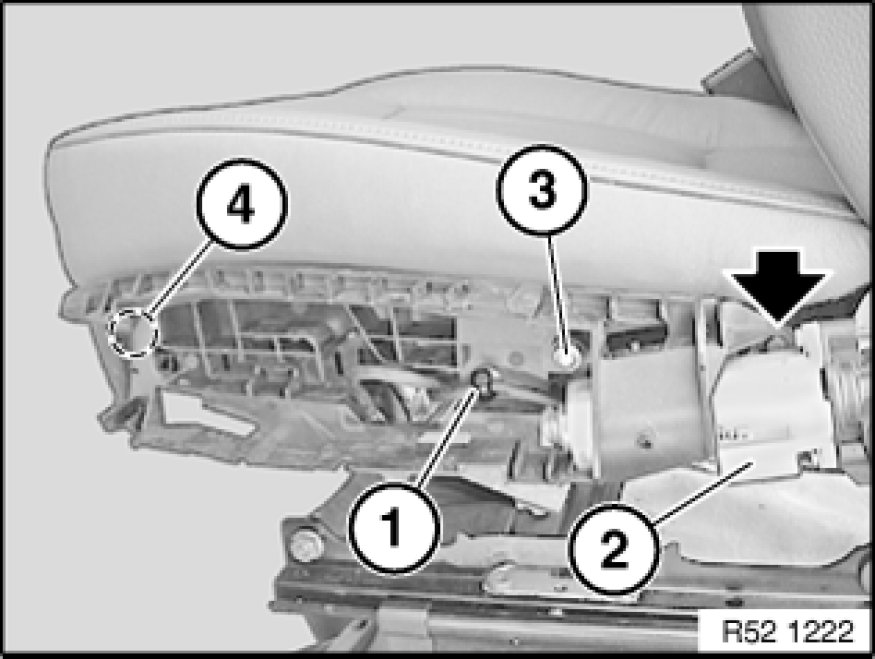

Cut open cable tie (1).
Unlock and disconnect plug connections (2) on servodrive.
Release screw (3).
Tightening torque 52 10 06AZ [1][2]Seats.
Unclip carrier in marked area and remove.

Installation:
Replace cable ties.
Make sure carrier is correctly seated on seat mechanism.
