51 13 435 Removing and Installing/Replacing Additional Brake Light, Rear Lid Cover
51 13 435 Removing And Installing/Replacing Additional Brake Light, Rear Lid Cover
Special tools required:
Necessary preliminary tasks:
- Remove rear lid trim

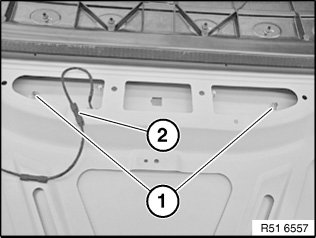

Unscrew nuts (1).
Tightening torque 51 13 8AZ.
Unfasten plug connection (2) and disconnect.
Raise and unclip additional brake light (1) with special tool 00 9 317.
Remove additional brake light (1).
Replacement:
Subsequent operation described in Removing additional brake light.
