33 17 004 Replacing All Rubber Mounts For Rear Axle Differential Mounting At Front

33 17 004 - Replacing all rubber mounts for rear axle differential mounting at front





Special tools required:
- 33 3 314
- 33 3 315
- 33 3 361
- 33 3 362
- 33 4 173





Necessary preliminary tasks:
- Remove rear differential 33 10 010 Removing And Installing/Replacing Rear Differential

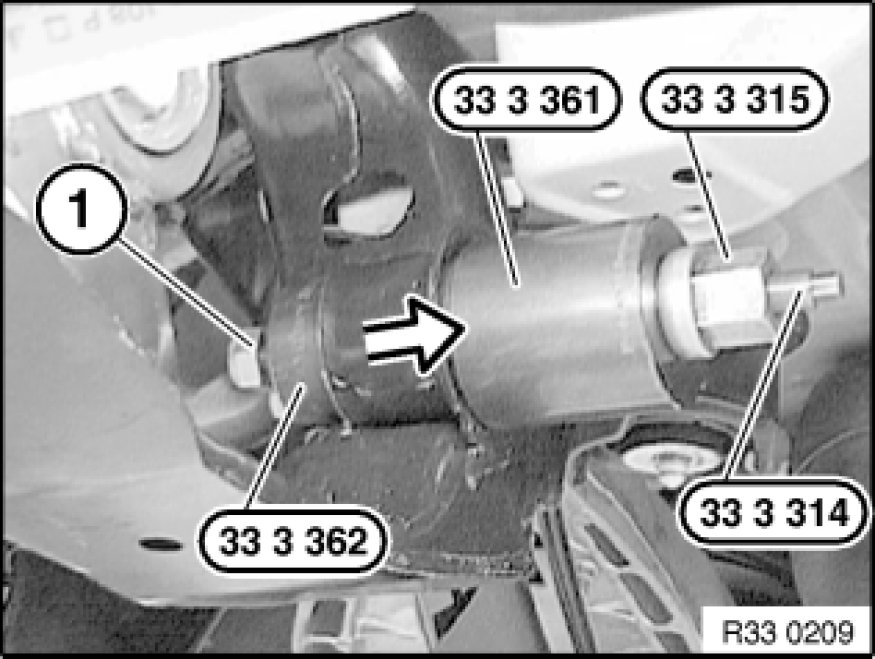

Pull out rubber mount with special tools 33 3 314, 33 3 315, 33 3 361, 33 3 362 and an M12 nut (1).





Important!

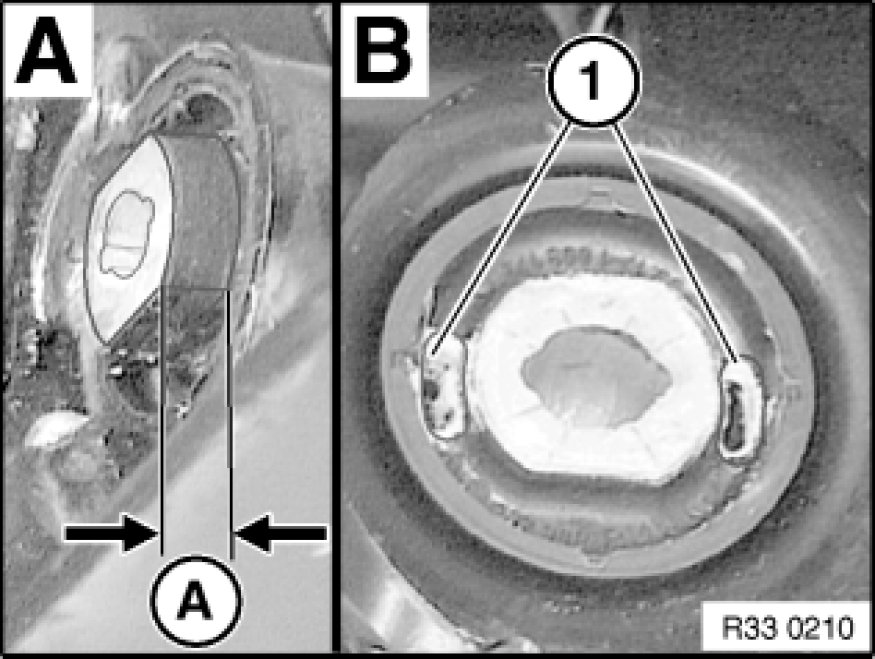

Observe installation position of rubber mount.
Fig. A: Protrusion (A) in rear direction of travel
Fig. B: Openings (1) in transverse vehicle direction

Coat new rubber mount and bearing bushing in rear axle carrier with Circo Light (refer to BMW Parts Service).

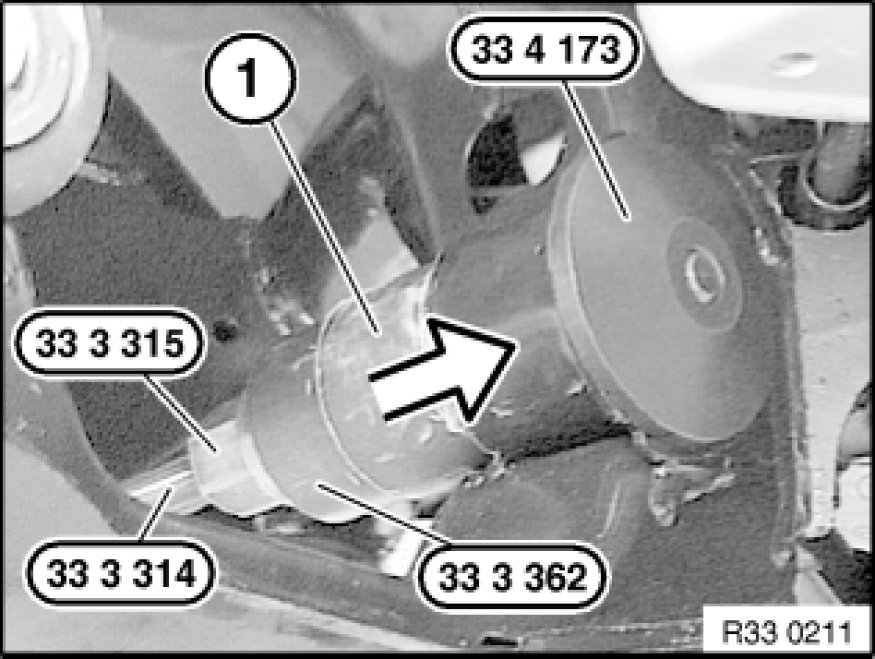

Draw in rubber mount (1) with special tools 33 3 314, 33 3 315, 33 3 362 and 33 4 173 as far as it will go.
