51 71 ... Removing and Installing/Replacing (Front) Left or Right Suspension Crossbrace

51 71 ... - Removing and installing/replacing left or right diagonal strut





Necessary preliminary tasks:
- Remove front underbody protection 51 47 490 Removing and Installing/Replacing Front Underbody Protection
- Remove coolant expansion tank Service and Repair
- Remove intake filter housing Service and Repair

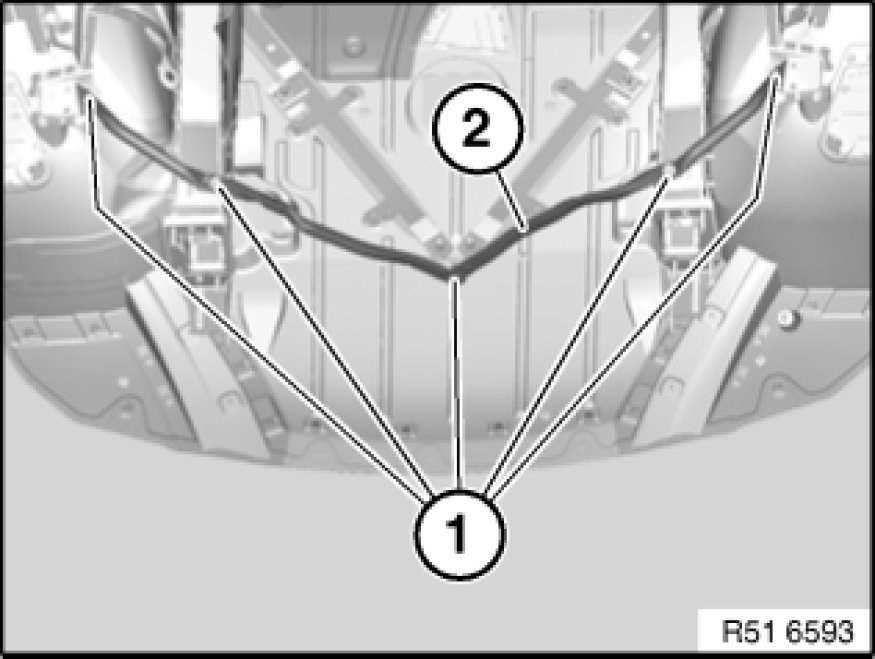

Release screws and nuts (1).
Tightening torque 51 71 27AZ Specifications.
Remove diagonal struts (2).
