24 34 ... Notes on Mechatronics (GA8HP45Z,GA8HP70Z,GA8HP90Z)

24 34 ... Notes on mechatronics (GA8HP45Z,GA8HP70Z,GA8HP90Z)

Special tools required:





Important!
- Do not let skin come in contact with transmission oil and do not inhale transmission oil vapors.
- Wear protective gloves.
- Ensure adequate ventilation





Important!
After completing work:
- Load specific data status with the BMW diagnosis system
- Check transmission oil level
Use only approved transmission oil.
Failure to comply with this requirement will result in serious damage to the automatic transmission!





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).

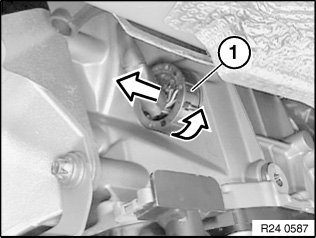

Unscrew connector (1) and disconnect.

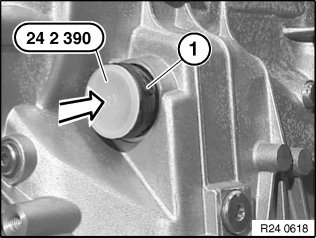

Insert special tool 24 2 390 in sealing sleeve (1).
