Home >> BMW >> 2011 >> X6 xDrive 35i (E71) L6-3.0L Turbo (N55) >> Repair and Diagnosis >> Diagrams >> Components >> B_Sensors, Transducers >> B2261 Rail_Pressure Sensor

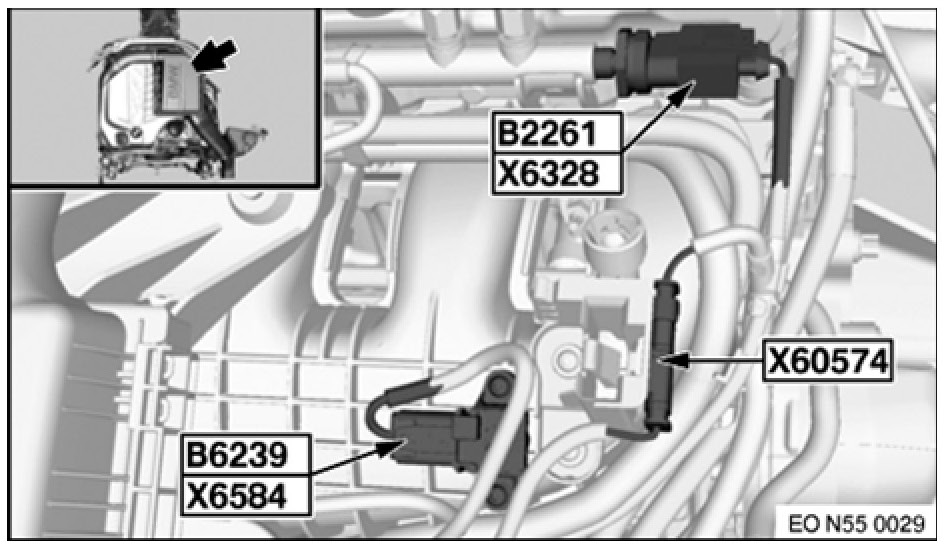

B2261 Rail_Pressure Sensor



B2261, B6239, X6584, X6328, X60574
