51 12 828 Removing and Installing/Replacing Guide For Bumper, Rear Left or Right

51 12 828 Removing And Installing/Replacing Guide For Bumper, Rear Left Or Right







Necessary preliminary tasks:
- Remove rear bumper

NOTE: The operation is described on the left side; proceed in the same way for the right side.







Version with TV function:

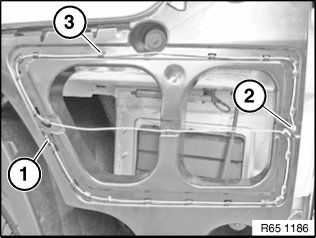

Feed aerial/antenna (1) out of guides (3) and through opening (2).

Installation note:
Make sure aerial/antenna is laid correctly.

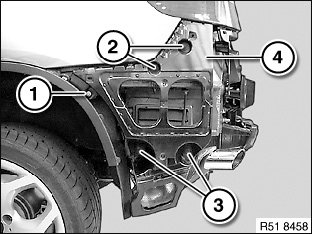

Release screws (1 and 2).
Unscrew nuts (3).
Take off holder (4).







Tightening torque 51 12 3AZ.







Installation note:

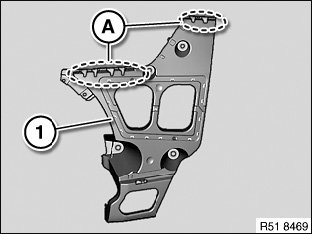

Guides in area (A) of bracket (1) must not be damaged.
