24 34 022 Replacing Sealing Sleeve For Transmission Housing (GA8HP45Z)
24 34 022 Replacing sealing sleeve for transmission housing (GA8HP45Z)Special tools required:
Important!
- Do not let skin come in contact with gearbox oil and do not inhale gearbox oil vapors.
- Wear protective gloves.
- Ensure adequate ventilation
Important!
After completion of work, check transmission oil level.
Use only approved gearbox oil.
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Necessary preliminary work:
^ Remove rear underbody protection.
^ Remove transmission oil sump.
^ Remove transmission cross member.
Important!
Support transmission with workshop jack.

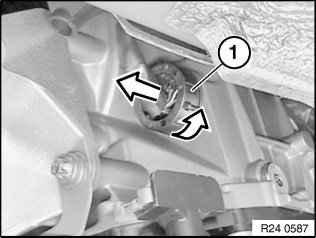

Unlock and disconnect connector (1) by turning.

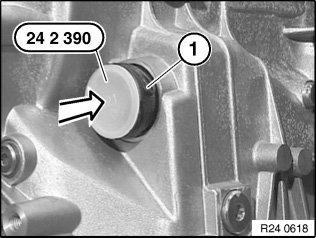

Insert special tool 24 2 390 in sealing sleeve (1).

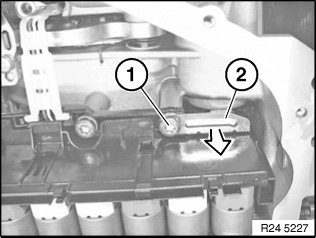

Release screw (1) and unlock sealing cup with slide (2).
Tightening torque 24 30 4AZ.
Note:
Make a note of installation position of sealing sleeve.

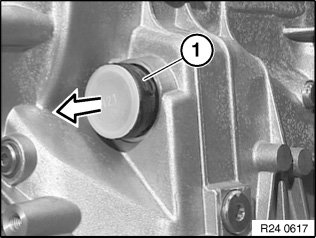

Pull out sealing cup (1).
Installation note:
Fit sealing sleeve in position (lug on inner surface). Turn until lug engages in groove of transmission. Slide in sealing cup.
Lug on sealing cup must not be damaged!
